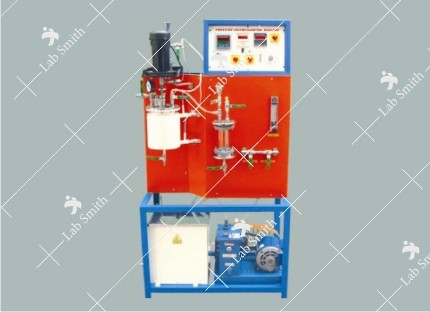

EMULSION POLYMERIZATION REACTOR

EMULSION POLYMERIZATION REACTOR

More Views

EMULSION POLYMERIZATION REACTOR

Code:
DESCRIPTION:
Polymerization Reaction:
The set-up is used to carry out the emulsion polymerization involving polymerization of a unsaturated monomer like Styrene. Emulsion is of the type: oil in water, monomer is oil soluble & the initiator is water-soluble & an emulsifier is used to create a stable emulsion. Apparatus can be used to generate the kinetic data for emulsion polymerization under various operating conditions like temperature, emulsifier concentration etc. Polymerization is carried out under the atmosphere of air free nitrogen. The set-up consists of jacketed type SS reactor fitted with a variable speed agitator & baffles. Hot water from a digitally controlled water bath is circulated in the jacket using a pump. Metered quantity of nitrogen gas from a cylinder passes through a de-oxygenation column & allowed to enter in the reactor. Air has to be evacuated using a vacuum pump to create vacuum up to 30mm of Hg before passing the nitrogen supply. Initiator from reservoir is supplied to the reactor under pressure. Set-up is complete & self-contained with sampling ports.
EXPERIMENTATION:
  1. The parameter studies are conducted involving studies of:
  2. Effect of RPM on conversion
  3. Effect of Initiator concentration.
  4. Effect of monomer concentration
  5. Effect of emulsifier concentration.
UTILITIES REQUIRED:
  • Water Supply
  • Floor Drain.
  • Electricity-1.5kw, Single.
  • Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.
  • Vacuum Pump
  • High purity N2 gas
TECHNICAL DETAILS:
Reactor (Jacketed Type) Material Stainless SteelTotal volume of Reactor 1.5-2 Ltrs. (approx.)
Agitator Material Stainless Steel Impeller (2 paddles)fitted with Stainless Steel Shaft coupled to DC Motor with Thyristor controlled DC Drive.
Flow  Measurement  Rotameter for Nitrogen Gas.
De-Oxygenation Column Compatible capacity.
Hot Water Tank Material Stainless Steel, Double Wall,insulated with ceramic wool.
Hot water circulation Magnetic Pump made of Polypropylene.Maximum working temperature is 80°C.
Heaters Nichrome wire heater.
Initiator Reservoir Capacity 25-50 ml.
Temperature Sensors RTD PT-100 type- 5 Nos.
Control panel comprising of
Digital Temp. Controller 0199.9°C RTD PT-100 type(For hot water tank) Digital Temp.
Indicator 0-199.9°C with multi-channel switch
RPM Indicator Digital, Non-contact type. With Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No. Description
JICRE-018 EMULSION POLYMERIZATION REACTOR

Description

Details

DESCRIPTION:
Polymerization Reaction:
The set-up is used to carry out the emulsion polymerization involving polymerization of a unsaturated monomer like Styrene. Emulsion is of the type: oil in water, monomer is oil soluble & the initiator is water-soluble & an emulsifier is used to create a stable emulsion. Apparatus can be used to generate the kinetic data for emulsion polymerization under various operating conditions like temperature, emulsifier concentration etc. Polymerization is carried out under the atmosphere of air free nitrogen. The set-up consists of jacketed type SS reactor fitted with a variable speed agitator & baffles. Hot water from a digitally controlled water bath is circulated in the jacket using a pump. Metered quantity of nitrogen gas from a cylinder passes through a de-oxygenation column & allowed to enter in the reactor. Air has to be evacuated using a vacuum pump to create vacuum up to 30mm of Hg before passing the nitrogen supply. Initiator from reservoir is supplied to the reactor under pressure. Set-up is complete & self-contained with sampling ports.
EXPERIMENTATION:
  1. The parameter studies are conducted involving studies of:
  2. Effect of RPM on conversion
  3. Effect of Initiator concentration.
  4. Effect of monomer concentration
  5. Effect of emulsifier concentration.
UTILITIES REQUIRED:
  • Water Supply
  • Floor Drain.
  • Electricity-1.5kw, Single.
  • Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.
  • Vacuum Pump
  • High purity N2 gas
TECHNICAL DETAILS:
Reactor (Jacketed Type) Material Stainless SteelTotal volume of Reactor 1.5-2 Ltrs. (approx.)
Agitator Material Stainless Steel Impeller (2 paddles)fitted with Stainless Steel Shaft coupled to DC Motor with Thyristor controlled DC Drive.
Flow  Measurement  Rotameter for Nitrogen Gas.
De-Oxygenation Column Compatible capacity.
Hot Water Tank Material Stainless Steel, Double Wall,insulated with ceramic wool.
Hot water circulation Magnetic Pump made of Polypropylene.Maximum working temperature is 80°C.
Heaters Nichrome wire heater.
Initiator Reservoir Capacity 25-50 ml.
Temperature Sensors RTD PT-100 type- 5 Nos.
Control panel comprising of
Digital Temp. Controller 0199.9°C RTD PT-100 type(For hot water tank) Digital Temp.
Indicator 0-199.9°C with multi-channel switch
RPM Indicator Digital, Non-contact type. With Standard make on/off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No. Description
JICRE-018 EMULSION POLYMERIZATION REACTOR
