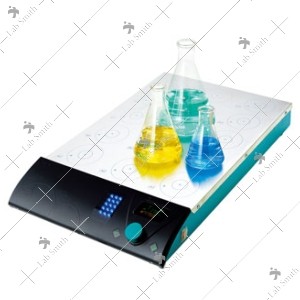

Magnetic Stirrers (Multi Position)

Magnetic Stirrers (Multi Position)

More Views

Magnetic Stirrers (Multi Position)

Code:
Magnetic Stirrers (Multi Position)
  • Powerful magnets and motors guarantee a high-speed and a good management of the devices.
Performance & Convenience
  • Ergonomic designed, lightweight, easy to operate, and low profile.
  • Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
  • Spark-less, silent and durable BLDC motor.
  • Wide top plate.
  • Non-slip strength rubber feet.
  • Strong magnetic coupling to ensure constant stirring.
  • Digital PID feedback control for every single point, separately.
  • User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:
     single point, multiple point, whole row, whole column, etc.
  • Easy-to-read VFD and intuitive control panel.
  • Bright and vivid LED position indicating lamps.
  • Non-slip see-through silicon plate mat. (optional)
  • Chemical-resistant #304 grade stainless steel top-plate.

Safety
  • Unit is safely designed to protect internal components from accidental spills.
  • Built-in thermal shutdown and current limit protection.

Model LSMS-23M LSMS-32M LSMS-33M LSMS-51M LSMS-52M LSMS-53M
Technical data Speed control Feedback control with PID
Stirring Position 6 6 9 5 10 15
Speed range (rpm) 30 to 2,000
Stirring point distance (W×D)(mm / inch) 117×170 /4.6×6.69 117×90 /4.6×3.54 117×90 /4.6×3.54 90 / 3.54 117×90 /  4.6×3.54
Timer 1 min. to 99 hr. 59 min.
Speed display VFD
Motor rating input/ output (W)per each point 2.9 / 1.6
Load, Max (kg / lbs) 30 / 66.14
General data Dimension (W×D×H)(mm / inch) 377×436×82/ 14.8×17.2×3.2 254×436×82/ 10×17.2×3.2 377×436×81/ 14.8×17.2×3.2 131×603×82/ 5.2×23.7×3.2 254×602×82/ 10×23.7×3.2 377×599×82/ 14.9×23.6×3.2
Weight (kg / lbs) 6 / 13.23 5 / 11.02 7 / 15.43 4 / 8.82 8 / 17.64 11 / 24.25
Electrical requirements AC 100 ~ 240V, 50 / 60Hz
Power consumption (W) 45 45 54 45 85 135
Protection class (DIN EN 60529) IP 21
Cat. No. KR plug JAAH332115K JAAH332215K JAAH332315K JAAH332415K JAAH332515K JAAH332615K
US plug JAAH332115U JAAH332215U JAAH332315U JAAH332415U JAAH332515U JAAH332615U


Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1513 8 / 0.31 13 / 0.51
LSBCW1515 8 / 0.31 15 / 0.59
LSBCW1522 8 / 0.31 22 / 0.86
LSBCW1525 8 / 0.31 25 / 0.98
LSBCW1528 8 / 0.31 28 / 0.10
LSBCW1538 8 / 0.31 38 / 1.49
LSBCW1541 8 / 0.31 41 / 1.61
LSBCW1551 8 / 0.31 51 / 2.00
LSBCW155110 10 / 0.39 51 / 2.00

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW11138 8 / 0.31 13 / 0.51
LSBCW11156 6 / 0.23 15 / 0.59
LSBCW11208 8 / 0.31 20 /  0.78
LSBCW11258 8 / 0.31 25 / 0.98
LSBCW11308 8 / 0.31 30 / 1.18
LSBCW1140 8 / 0.31 40 / 1.57
LSBCW1150 8 / 0.31 50 / 1.96

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW1610 5 / 0.19 10 / 0.39
LSBCW1615 6 / 0.23 15 / 0.59
LSBCW1620 10 / 0.39 20 /  0.78
LSBCW162510 10 / 0.39 25 / 0.98
LSBCW1630 16 / 0.63 30 / 1.18
LSBCW1635 16 / 0.63 35 / 1.38
LSBCW1640 20 / 0.78 40 / 1.57
LSBCW1650 20 / 0.78 50 / 1.96


Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW41300 10 / 0.39 300 / 11.81
LSBCW41350 10 / 0.39 350 / 13.77
LSBCW41450 10 / 0.39 450 / 17.71

Cat. No. Ø (mm / inch) L (mm / inch)
LSBCW4150 10 / 0.39 150 / 5.90
LSBCW4250 10 / 0.39 250 / 9.84
LSBCW4350 10 / 0.39 350 / 13.77
LSBCW4450 10 / 0.39 450 / 17.71

Cat. No. Description
LSMTT0132 Support rod, M10 (Ø12×400mm / Ø0.47x15.75˝)
LSAAA37512 Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝)
LSAAA37513 Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝)
LSAAA37514 Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝)
LSBEA1000014 2 Prong clamp (60mm / 2.36˝ grip)


Cat. No. Description Suitable for
LSMTT0144 Plate cover (White color, Silicone Ø115mm / Ø4.53˝) LSMS-12T
LSMTT0146 Plate cover (White color, Silicone Ø165mm / Ø6.49˝) LSMS-17T
LSMTT0002 Plate cover (White color, Silicone Ø120mm / Ø4.72˝) LSMS-12B
LSMTT0003 Plate cover (White color, Silicone Ø170mm / Ø6.69˝) LSMS-17B/G
LSMTT0004 Plate cover (White color, Silicone Ø220mm / Ø8.66˝) LSMS-22B/G
LSMTT0143 Plate cover (Black color, Silicone Ø115mm / Ø4.53˝) LSMS-12T
LSMTT0145 Plate cover (Black color, Silicone Ø165mm / Ø6.49˝) LSMS-17T
LSMTT0005 Plate cover (Black color, Silicone Ø120mm / Ø4.72˝) LSMS-12B
LSMTT0006 Plate cover (Black color, Silicone Ø170mm / Ø6.69˝) LSMS-17B/G
LSMTT0007 Plate cover (Black color, Silicone Ø220mm / Ø8.66˝) LSMS-22B/G
LSMTS0015 Silicone pad (355×475×1mm / 13.98x18.70x0.04˝) LSMS-53M
LSMTS0016 Silicone pad (235×475×1mm / 9.25x18.70x0.04˝) LSMS-52M
LSMTS0017 Silicone pad (115×475×1mm / 4.53x18.70x0.04˝) LSMS-51M
LSMTS0041 Silicone pad (235×310×1mm / 9.25x12.20x0.04˝) LSMS-32M
LSMTS0042 Silicone pad (355×310×1mm / 13.98x12.20x0.04˝) LSMS-23M/33M
LSMTT0001 Power adapter (100~240V, 50/60Hz) LSMS-12B/T, MS-17B/T
LSAAH33501 Power divider (5 channels) 1) with M10 rod, adapter(100~240V, 50/60Hz), five DC plugs
1) Power supply to max. five units at the same time.
