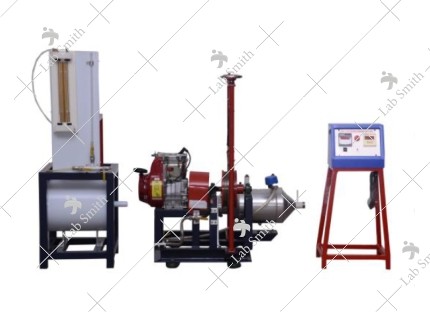

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Eddy Current Dynamometer

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Eddy Current Dynamometer

More Views

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Eddy Current Dynamometer

Code:

DESCRIPTION:

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

EXPERIMENTATION:

To determine specific fuel consumption
To determine Brake Horse Power
To determine Brake Thermal Efficiency

UTILITIES REQUIRED:

Petrol : 5 liters
Water Supply: Continuous water flow of 10LPM at ½ kg/cm2 pressure if Calorimeter is ordered.
Power Supply : 230V AC, 5 Amp socket with earth
Floor Space : 2m x 1 m

TECHNICAL DETAILS:

Type of Engine	Single cylinder, four stroke, air cooled, Hand start, self lubricating, petrol engine.
Type of Loading	Eddy Current Dynamometer
Fuel Measuring System	Fuel measuring system consists of a fuel tank, a burette and a three way cock.
Air Intake Measuring System	Air tank fitted with orifice and water manometer.
Exhaust Gas Calorimeter	An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases. The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil. Digital Temperature indicator with Temperature sensors at appropriate position will be provided.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JITD-001D	1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Eddy Current Dynamometer

Description

Details

DESCRIPTION:

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

EXPERIMENTATION:

To determine specific fuel consumption
To determine Brake Horse Power
To determine Brake Thermal Efficiency

UTILITIES REQUIRED:

Petrol : 5 liters
Water Supply: Continuous water flow of 10LPM at ½ kg/cm2 pressure if Calorimeter is ordered.
Power Supply : 230V AC, 5 Amp socket with earth
Floor Space : 2m x 1 m

TECHNICAL DETAILS:

Type of Engine	Single cylinder, four stroke, air cooled, Hand start, self lubricating, petrol engine.
Type of Loading	Eddy Current Dynamometer
Fuel Measuring System	Fuel measuring system consists of a fuel tank, a burette and a three way cock.
Air Intake Measuring System	Air tank fitted with orifice and water manometer.
Exhaust Gas Calorimeter	An Exhaust Gas Calorimeter, made of Stainless Steel will be provided for calculating heat carried away by exhaust gases. The body of the calorimeter is insulated with ceramic wool and cladded by Aluminum foil. Digital Temperature indicator with Temperature sensors at appropriate position will be provided.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JITD-001D	1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Eddy Current Dynamometer
