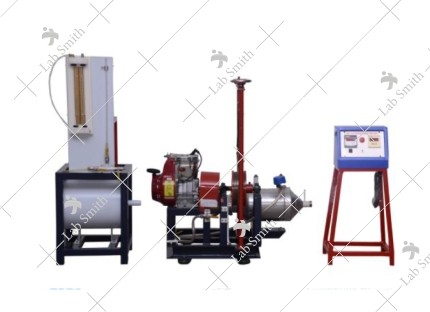

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Rope Brake Dynamometer

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Rope Brake Dynamometer

More Views

1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Rope Brake Dynamometer

Code:

DESCRIPTION:

IC engines are widely used in automobile, domestic and industrial sector. They are classified according to cycle, number of cylinders, arrangement of cylinders, fuel used, and type of ignition, valve arrangement, cooling system. Test rigs are used to find out the performance of an IC engine. It consists of an IC Engine, dynamometer, fuel measuring, air intake measuring and various other arrangements.

EXPERIMENTATION:

To determine specific fuel consumption
To determine Brake Horse Power
To determine Brake Thermal Efficiency

UTILITIES REQUIRED:

Petrol : 5 liters
Water Supply: Continuous water flow of 10LPM at ½ kg/cm2 pressure if Calorimeter is ordered.
Power Supply : 230V AC, 5 Amp socket with earth
Floor Space : 2m x 1 m

TECHNICAL DETAILS:

Type of Engine	Single cylinder, four stroke, air cooled, Hand start, self lubricating, petrol engine.
Type of Loading	Rope Brake Dynamometer
Fuel Measuring System	Fuel measuring system consists of a fuel tank, a burette and a three way cock arrangement.
Air Intake Measuring System	Air tank fitted with orifice and water manometer.
RPM measurement	RPM Indicator with Proximity sensor.
Exhaust Gas Calorimeter	Made of Stainless Steel including the body & the tube for cooling water circulation and designed to get maximum temperature difference. The body of the calorimeter is insulated on all sides to prevent heat losses due to radiation.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JITD-001A	1 CYLINDER 4 STROKE PETROL ENGINE TEST RIG With Rope Brake Dynamometer
