Details

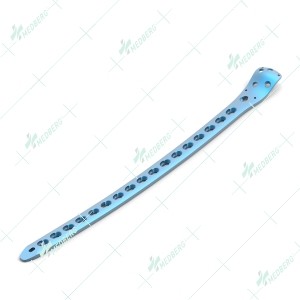

4.5/5.0mm Wise-Lock Proximal Femoral Lateral Plate (Type-II)
Specifications
-
Plates(Right & Left) available in both-Titanium & Stainless steel.
-
Plate features locking compression holes and round locking holes that accepts 4.5/5.0mm cortical and locking screws.
-
Plate available with 4,5,6,7,8,9,10,12,14 & 16 holes
4.5/5.0mm Wise Lock Proximal Femoral Lateral Plate is intended for:
-
fractures of the femur including: fractures of the trochanteric region , trochanteric simple, cervicotrochanteric region, trochanterodiaphyseal, multifragmentary pertrochanteric, intertrochanteric, intertrochanteric reversed, or transverse or with additional fracture of medial cortex.
-
Fractures of the proximal end of the femur combined with ispsilateral shaft fractures, metastatic fracture of the proximal femur and osteotomies of the proximal femur.
Ordering & Technical Details:
| Holes |
Left Direction |
Right Direction |
| Stainless Steel |
Titanium |
Stainless Steel |
Titanium |
| 4 |
J1128.04L |
JTI-1128.04L |
J1128.04R |
JTI-1128.04R |
| 5 |
J1128.05L |
JTI-1128.05L |
J1128.05R |
JTI-1128.05R |
| 6 |
J1128.06L |
JTI-1128.06L |
J1128.06R |
JTI-1128.06R |
| 7 |
J1128.07L |
JTI-1128.07L |
J1128.07R |
JTI-1128.07R |
| 8 |
J1128.08L |
JTI-1128.08L |
J1128.08R |
JTI-1128.08R |
| 9 |
J1128.09L |
JTI-1128.09L |
J1128.09R |
JTI-1128.09R |
| 10 |
J1128.10L |
JTI-1128.10L |
J1128.10R |
JTI-1128.10R |
| 12 |
J1128.12L |
JTI-1128.12L |
J1128.12R |
JTI-1128.12R |
| 14 |
J1128.14L |
JTI-1128.14L |
J1128.14R |
JTI-1128.14R |
| 16 |
J1128.16L |
JTI-1128.16L |
J1128.16R |
JTI-1128.16R |
