- Description
-
Details

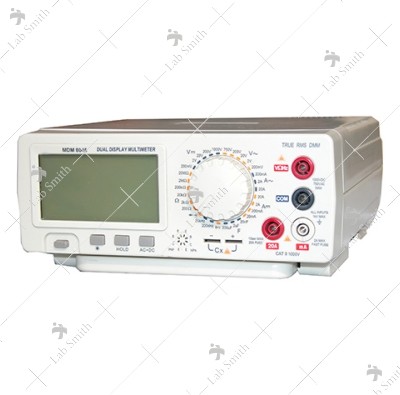

Over the years of dedication, we have been a reliable supplier of 4.5 Digital Multimeter (True RMS) to our widely scattered clients. It is used for making different types of bricks for meeting the diverse requirements of our patrons. Strong material is used in making 4.5 Digital Multimeter (True RMS) at our unit along with the help of advanced tools and equipment. It is hence known for its high performance, efficiency, durability, corrosion resistance, low maintenance and a long functional life.Features :- LCD Display with backlight, Resolution 10microV, 10microA,10mohm, 1pF, 0.1Hz
- Auto operation, Overload protection
- Measure & Test AC, DC Voltage & AC, DC Current, Resistance, Diode,
- Capacitance, Frequency, Transistor, Continuity
- All measure range has protected circuit
- 0.05% DCV Accuracy
- Automatic Zero Adjustment
- AC Voltage 1000V
- AC True RMS or AC+DC True RMS
Technical Specifications :
DC Voltage range 200mV, 2V, 20V, 200V, 1000V Accuracy +(0.05% + 3 Digit) 200mV~200V +(0.1% + 5 Digit) 1000V DC Current range 20mA, 200mA, 2A, 20A Accuracy +(0.35% + 10 Digit ) 20mA, 200mA +(0.8% + 10 Digit ) 2A, 20A AC Voltage range (True RMS) 200mV, 2V, 20V, 200V, 750V Accuracy +(0.8% + 80 Digit) 50Hz~50kHz at 200mV +(0.8% + 80 Digit) 50Hz~20kHz at 2-20V +(0.8% + 80 Digit) 50Hz~5kHz at 200V +(1.0% + 50 Digit) 50Hz~400Hz at 750V Input impedance 2Mohm AC Current range 200mA, 2A, 20A Accuracy +(0.8% + 80 Digit) 50Hz~5kHz at 200mA +(1% + 50 Digit) at 50Hz~400Hz at 2A~20A Resistance range 200ohm,2kohm, 20kohm,200kohm, 2Mohm,20Mohm Accuracy +(0.1% + 20 Digit) at 200ohm, +(0.1% + 5 Digit) at 2kohm~2Mohm, + (0.4% + 5 Digit) at 20Mohm Capacitance range 20nF, 2microF, 200microF Accuracy +(3.5% + 20 Digit) at 20nF, 2microF,+(5% + 30 Digit) at 200microF Frequency range 20kHz, 200kHz, Accuracy +(1% + 20 Digit) hFE (PNP or NPN) Test condition current is approx. 10microA,Vce is approx 3V Diode test Check the forward voltage of diodemax.Forward voltage 2V. Open voltage 2.8V Continuity beeper <5ohm NMRR >60dB CMRR >120dB Power requirement 220 VAC +10% , 50 Hz Weight 1.0Kg Approx. Dimensions (mm) 220(L) x 245(B) x 80(H)
Standard Accessories:Power cable, Instruction manualOrdering Details:Catalogue No. Description LTM-5040 4.5 Digital Multimeter (True RMS) - Additional Information
-
Additional Information
Code No - Reviews
-
