Details

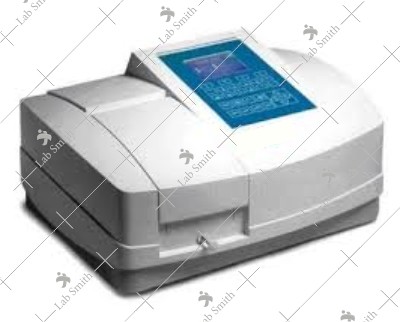

ADVANCE UV VISIBLE SPECTROPHOTOMETER
We offer wide range of Advance UV Visible Spectrophotometer.
Technical Specifications
| Catalogue No. |
JLT-290 |
| Optical System |
Single Beam, Grating 1200 lines/mm |
| Wavelength Range |
200-1000nm |
| Band Width |
1 nm |
| Wavelength Accuracy |
±0.5 nm |
| Wavelength Repeatability |
+0.1nm |
| Wavelength Setting |
Automatic |
| Photometric Accuracy |
±0.1 %T |
| Photometric Repeatability |
+0.3 %T |
| Photometric Display Range |
-0.3-3.0A,0-200%T, 0-9999C |
| Stability |
+0.002A/h @ 500nm |
| Stray Light |
≤0.3%T @220nm, 360nm |
| Data Output Port |
USB |
| Printer Port |
Parallel Port |
| Display |
128*64 Dots LCD |
| Lamps |
Deuterium Lamp & Tungsten Halogen Lamp |
| Detector |
Silicon Photodiode |
| Power Requirement |
AC220V/50 Hz |
