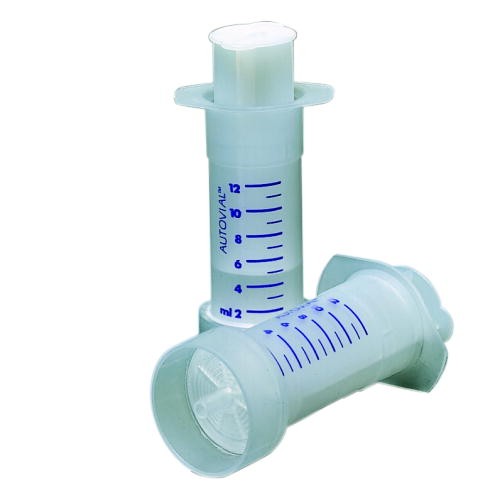

Autovial Syringeless Filter

Autovial Syringeless Filters are preassembled filtration devices for removing particulates from samples. They replace syringe-coupled filtration devices with single, disposable units.

• Single unit convenience saves time. No assembly required – easier to load.
• Choice of filter media. Compatible with a wide range of sample types.
• Ideal for hazardous samples. Self contained device eliminates risk of filter pop-off.
• Built-in air purge maximizes sample recovery.
• Sterile option available to maintain sample integrity.
• Prefilter designed for difficult-to-filter samples (no prefilter in Autovial 5 and in selected Autovial 12).
• Choice of glass fiber or polypropylene prefilters.

Autovial devices are comprised of two parts: a graduated filter barrel and a plunger. The proven design features an integral filter, built-in air purge, and a support stand that protects the recessed slip-luer tip. They are available in a 5 ml and 12 ml volume capacity.

The Autovial filter is selected according to membrane compatibility with the sample. In practice, the sample is poured into the 5 ml or 12 ml capacity filter barrel. The plunger is inserted into the barrel until the bottom is securely in place; there is a gap of air between the sample and plunger. Then, the tip of the Autovial is placed into the mouth of an autosampler vial or container and the plunger compressed. Filtration begins immediately and, as the plunger is compressed until it reaches the bottom, the membrane is purged with air for maximum sample recovery. For direct instrument injection, a needle is placed on the Autovial slip-luer outlet.

Specifications:

• Sterility: No
• Outlet Connector: Male slip luer
• Housing: Polypropylene (PP)
• Capacity Max.: 5 ml
• Sterilization: 121°C for 20 min

Ordering Information:
