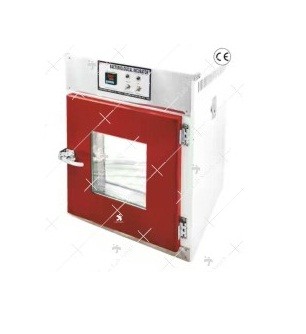

Bacteriological Incubator -231
Benefits & Advantages
- Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
- Most ideal for various experiments in microbiology, Institutes, industries, R & D labs etc.
- Synthetic door gasket made of neoprene on the double walled door.
- User oriented design of shelves makes you adjust each space of shelves without difficulty.
- Adjustable two ventilation slides control inner air/ vapour circulation.
- Beaded heating elements are placed in ribs, at bottom and sides for uniform heat distribution.
Constructional Features
- Outer body made up of mild steel sheet duly powder coated. Inner chamber and perforated trays made of stainless steel (SS-304).
- Space between inner chamber and outer wall is filled with high grade mineral wool for minimal heat dissipation.
- Bigger sized units mounted on caster wheels for easy portability.
- Door fitted with heavy duty hinges and door handle ensuring there are no leakages through the door gasket.
- Beaded heating elements are placed in ribs, at bottom and sides, for uniform heat distribution.
- Synthetic door gasket made of neoprene rubber is fitted to all units instead of asbestos.
- Air ventilators are also provided on the sides of the unit.
- To work on 220/230V AV, 50/60 Hz supply
Technical Specifications for Bacteriological Incubator Thermostatic Model:
- Temperature Range: Ambient 50OC to 70OC
- Type (OPTION): Available with or without forced convection system
- Temp. Controller: Hydraulic type capillary thermostat
- Temperature Accuracy: +1OC
- Temp. Display: Thru L-shaped prismatic thermometer
Technical Specifications for Bacteriological Incubator Digital Model:
- Temperature Range: 50OC to 70OC +1OC
- Forced Convection: Available with forced convection system (Standard Features)
- Temp. Controller: Microprocessor based PID Digital Temperature Indicator cum Controller with LED Display
- OR Auto time Control Microprocessor (SAD) With Digital Timer ADD Prefix SAD to Model
- OR Fuzzy Logic Control PLC-HMI ADD Prefix PLC to Model
- Display: Digital LED with SV and PV display
- Regulator: Solid state electronic relay with protective heat sink
- Safety Device: Over temperature limiter switch prevents overheating
Ordering Information
BACTERIOLOGICAL INCUBATOR THERMOSTATIC MODEL:
Cat. No.
Inner Chamber Material
Capacity Ltrs.
Internal Dimensions
(WxDxH) mm.
LI-20500/1
Bacteriological Incubator, Aluminum with Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/2
Bacteriological Incubator, Aluminum with Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/3
Bacteriological Incubator, Aluminum with Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/4
Bacteriological Incubator, Aluminum with Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/5
Bacteriological Incubator, Aluminum with Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/6
Bacteriological Incubator, Aluminum with Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/7
Bacteriological Incubator, Aluminum with Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/8
Bacteriological Incubator, Aluminum with Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/9
Bacteriological Incubator, Aluminum with Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/10
Bacteriological Incubator, Aluminum without Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/11
Bacteriological Incubator, Aluminum without Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/12
Bacteriological Incubator, Aluminum without Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/13
Bacteriological Incubator, Aluminum without Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/14
Bacteriological Incubator, Aluminum without Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/15
Bacteriological Incubator, Aluminum without Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/16
Bacteriological Incubator, Aluminum without Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/17
Bacteriological Incubator, Aluminum without Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/18
Bacteriological Incubator, Aluminum without Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/19
Bacteriological Incubator, Stainless Steel with Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/20
Bacteriological Incubator, Stainless Steel with Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/21
Bacteriological Incubator, Stainless Steel with Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/22
Bacteriological Incubator, Stainless Steel with Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/23
Bacteriological Incubator, Stainless Steel with Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/24
Bacteriological Incubator, Stainless Steel with Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/25
Bacteriological Incubator, Stainless Steel with Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/26
Bacteriological Incubator, Stainless Steel with Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/27
Bacteriological Incubator, Stainless Steel with Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/28
Bacteriological Incubator, Stainless Steel without Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/29
Bacteriological Incubator, Stainless Steel without Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/30
Bacteriological Incubator, Stainless Steel without Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/31
Bacteriological Incubator, Stainless Steel without Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/32
Bacteriological Incubator, Stainless Steel without Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/33
Bacteriological Incubator, Stainless Steel without Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/34
Bacteriological Incubator, Stainless Steel without Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/35
Bacteriological Incubator, Stainless Steel without Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/36
Bacteriological Incubator, Stainless Steel without Fan
750 ltrs
900 x 900 x 900 mm
BACTERIOLOGICAL INCUBATOR DIGITAL MODEL:
Cat. No.
Inner Chamber Material
Capacity Ltrs.
Internal Dimensions
(WxDxH) mm.
LI-20500/37
Bacteriological Incubator, Aluminum with Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/38
Bacteriological Incubator, Aluminum with Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/39
Bacteriological Incubator, Aluminum with Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/40
Bacteriological Incubator, Aluminum with Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/41
Bacteriological Incubator, Aluminum with Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/42
Bacteriological Incubator, Aluminum with Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/43
Bacteriological Incubator, Aluminum with Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/44
Bacteriological Incubator, Aluminum with Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/45
Bacteriological Incubator, Aluminum with Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/46
Bacteriological Incubator, Aluminum without Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/47
Bacteriological Incubator, Aluminum without Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/48
Bacteriological Incubator, Aluminum without Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/49
Bacteriological Incubator, Aluminum without Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/50
Bacteriological Incubator, Aluminum without Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/51
Bacteriological Incubator, Aluminum without Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/52
Bacteriological Incubator, Aluminum without Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/53
Bacteriological Incubator, Aluminum without Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/54
Bacteriological Incubator, Aluminum without Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/55
Bacteriological Incubator, Stainless Steel with Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/56
Bacteriological Incubator, Stainless Steel with Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/57
Bacteriological Incubator, Stainless Steel with Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/58
Bacteriological Incubator, Stainless Steel with Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/59
Bacteriological Incubator, Stainless Steel with Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/60
Bacteriological Incubator, Stainless Steel with Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/61
Bacteriological Incubator, Stainless Steel with Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/62
Bacteriological Incubator, Stainless Steel with Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/63
Bacteriological Incubator, Stainless Steel with Fan
750 ltrs
900 x 900 x 900 mm
LI-20500/64
Bacteriological Incubator, Stainless Steel without Fan
28 ltrs
300 x 300 x 300 mm
LI-20500/65
Bacteriological Incubator, Stainless Steel without Fan
45 ltrs
355 x 355 x 355 mm
LI-20500/66
Bacteriological Incubator, Stainless Steel without Fan
95 ltrs
455 x 455 x 455 mm
LI-20500/67
Bacteriological Incubator, Stainless Steel without Fan
125 ltrs
455 x 455 x 605 mm
LI-20500/68
Bacteriological Incubator, Stainless Steel without Fan
224 ltrs
605 x 605 x 605 mm
LI-20500/69
Bacteriological Incubator, Stainless Steel without Fan
252 ltrs
605 x 455 x 910 mm
LI-20500/70
Bacteriological Incubator, Stainless Steel without Fan
336 ltrs
605 x 605 x 910 mm
LI-20500/71
Bacteriological Incubator, Stainless Steel without Fan
500 ltrs
600 x 900 x 910 mm
LI-20500/72
Bacteriological Incubator, Stainless Steel without Fan
750 ltrs
900 x 900 x 900 mm
Options
Cat. No.
Options
LI-20501/1
Microprocessor based Semi Automatic Digital Temperature Indicator cum
Controller with an built in digital timer and buzzer for cycle end.
