BALL MILL (With Three Prefixed Speeds)

BALL MILL (With Three Prefixed Speeds)

More Views

BALL MILL (With Three Prefixed Speeds)

Code:

DESCRIPTION:

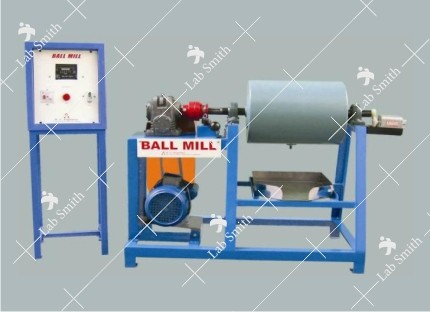

Ball Mills are horizontal rotating cylindrical steel chamber of half filled with steel balls. The size reduction is accomplished by the impact of balls as they fall back after being lifted by the baffles fitted in the rotating chamber.

Ball Mill is fitted on a sturdy MS frame. Charging of balls and material is done by the means of opening provided in the chamber. The chamber is turning about the horizontal axis through a reduction gearbox and three step pulley connected to a motor. The stepped pulley arrangement is done for moving the Ball Mill at three different speeds. A revolution counter is provided to find out the number of turns. Special arrangement is done to free the Ball Mill from reduction gearbox for charging and discharging the material.

EXPERIMENTATION:

To study effect of RPM on the power consumption of a Ball Mill.
To determine the efficiency of a Ball Mill for grinding a material of known Wi.

UTILITIES REQUIRED:

Raw Material for Feed.
Electric Supply : Single phase, 220 V AC, 1 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 1.5 x 1m
Steel Balls

TECHNICAL DETAILS:

Ball Mill	Material MSDia 275mm, Length 350mm. Thickness 5 mm.
Discharge Chute	Suitable size.
Feed Size	6 mm (approx.)
Product Size	200 mesh (approx.)
Drive	1 H.P. motor coupled to Reduction Gearbox & 3 step pulley
Product receiver	Material Stainless Steel of suitable size.
Revolution Counter	Mechanical type.
Product Receiver	Material Stainless Steel of suitable size.
Control panel comprises of
Energy measurement	Electronic Energy meter
MCB	For overload protection.
Standard make on/off switch, Mains indicator etc.
The set-up is fitted with required guards.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.


Ordering Details:

Catalogue No	Description
JIMO-003	BALL MILL (With Three Prefixed Speeds)

Description

Details

DESCRIPTION:

Ball Mills are horizontal rotating cylindrical steel chamber of half filled with steel balls. The size reduction is accomplished by the impact of balls as they fall back after being lifted by the baffles fitted in the rotating chamber.

Ball Mill is fitted on a sturdy MS frame. Charging of balls and material is done by the means of opening provided in the chamber. The chamber is turning about the horizontal axis through a reduction gearbox and three step pulley connected to a motor. The stepped pulley arrangement is done for moving the Ball Mill at three different speeds. A revolution counter is provided to find out the number of turns. Special arrangement is done to free the Ball Mill from reduction gearbox for charging and discharging the material.

EXPERIMENTATION:

To study effect of RPM on the power consumption of a Ball Mill.
To determine the efficiency of a Ball Mill for grinding a material of known Wi.

UTILITIES REQUIRED:

Raw Material for Feed.
Electric Supply : Single phase, 220 V AC, 1 kW.
Set of Sieves with Sieve Shaker for analysis.
Floor area 1.5 x 1m
Steel Balls

TECHNICAL DETAILS:

Ball Mill	Material MSDia 275mm, Length 350mm. Thickness 5 mm.
Discharge Chute	Suitable size.
Feed Size	6 mm (approx.)
Product Size	200 mesh (approx.)
Drive	1 H.P. motor coupled to Reduction Gearbox & 3 step pulley
Product receiver	Material Stainless Steel of suitable size.
Revolution Counter	Mechanical type.
Product Receiver	Material Stainless Steel of suitable size.
Control panel comprises of
Energy measurement	Electronic Energy meter
MCB	For overload protection.
Standard make on/off switch, Mains indicator etc.
The set-up is fitted with required guards.
An ENGLISH instruction manual will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.


Ordering Details:

Catalogue No	Description
JIMO-003	BALL MILL (With Three Prefixed Speeds)
