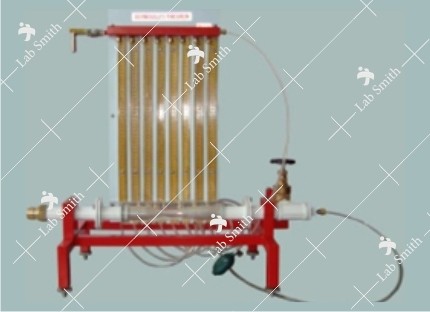

BERNOULLI'S THEOREM APPARATUS (Hydraulic Bench Accessory)

JIHD-052

More Views

BERNOULLI'S THEOREM APPARATUS (Hydraulic Bench Accessory)

Code:
DESCRIPTION:
The equipment is designed and fabricated to demonstrate the Bernoulli's theorem. It consists of a test section made of acrylic. It has convergent and divergent sections. Pressure tapings are provided at different locations in convergent and divergent section. The set-up can be connected to Hydraulic Bench with flexible pipe line.

EXPERIMENTATION:
  •  To verify Bernoulli's Theorem experimentally.
  •  To plot the hydraulic gradient line.
  •  To plot the Total energy line Vs distance.
UTILITIES REQUIRED:
  • Hydraulic Bench.
TECHNICAL DETAILS:
Test Section Material Acrylic (One Piece).
Piezometer Tubes Material P.U. Tubes.
Inlet Tank Capacity 20 Ltrs.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No. Description
JIHD-052 BERNOULLI'S THEOREM APPARATUS (Hydraulic Bench Accessory)
