BERNOULLI'S THEOREM APPARATUS

BERNOULLI'S THEOREM APPARATUS

More Views

BERNOULLI'S THEOREM APPARATUS

Code:
DESCRIPTION:

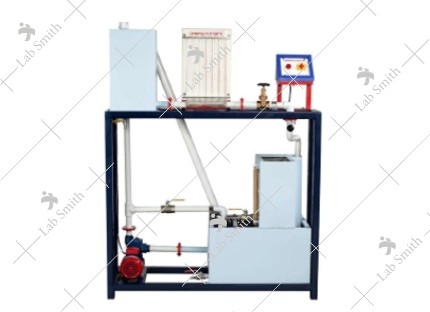

The equipment is designed and fabricated to demonstrate the Bernoulli's theorem. It consists of a test section made of acrylic. It has convergent and divergent sections. Pressure tapings are provided at different locations in convergent and divergent section. Present set-up is self-contained water re-circulating unit, provided with a sump tank, centrifugal pump etc. An arrangement is done to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.

EXPERIMENTATION:
  •  To verify Bernoulli's Theorem experimentally.
  •  To plot the Total energy Vs distance.
UTILITIES REQUIRED:
  •  Water Supply.
  •  Floor Drain.
  •  Electricity 0.5 kW, 220 V AC, Single Phase.
  •  Floor Area 1.5 x 0.75 m.
TECHNICAL DETAILS:
Test Section Material Acrylic (One Piece).
Piezometer Tubes Material P.U. Tubes (7 Nos.)
Water Circulation FHP Pump, Crompton make.
Flow Measurement Using Measuring Tank with Piezometer,Capacity 25 Ltrs.
Sump Tank Capacity 70 Ltrs.
Inlet Tank Capacity 20 Ltrs.
Stop watch Electronic
Control Panel Comprises of Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No. Description
JIHD-001 BERNOULLI'S THEOREM APPARATUS

Description

Details

DESCRIPTION:
The equipment is designed and fabricated to demonstrate the Bernoulli's theorem. It consists of a test section made of acrylic. It has convergent and divergent sections. Pressure tapings are provided at different locations in convergent and divergent section. Present set-up is self-contained water re-circulating unit, provided with a sump tank, centrifugal pump etc. An arrangement is done to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.

EXPERIMENTATION:
  •  To verify Bernoulli's Theorem experimentally.
  •  To plot the Total energy Vs distance.
UTILITIES REQUIRED:
  •  Water Supply.
  •  Floor Drain.
  •  Electricity 0.5 kW, 220 V AC, Single Phase.
  •  Floor Area 1.5 x 0.75 m.
TECHNICAL DETAILS:
Test Section Material Acrylic (One Piece).
Piezometer Tubes Material P.U. Tubes (7 Nos.)
Water Circulation FHP Pump, Crompton make.
Flow Measurement Using Measuring Tank with Piezometer,Capacity 25 Ltrs.
Sump Tank Capacity 70 Ltrs.
Inlet Tank Capacity 20 Ltrs.
Stop watch Electronic
Control Panel Comprises of Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus.
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
Catalogue No. Description
JIHD-001 BERNOULLI'S THEOREM APPARATUS
