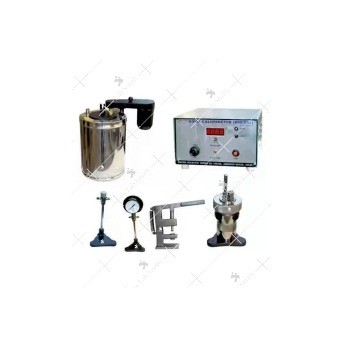

Bomb Calorimeter (Digital) -506

Introduction

Working on isothermal principal our bomb calorimeters provide easy, simple and inexpensive method for determining calorific values of organic matter, liquids, food products, bagasse, animal feeds, husk, petrol / diesel etc. It is also the most accurate method of determining heat of combustion of fuels.

Technical Specifications:

• Bomb Capacity: 300 ml
• Control & Display: Digital Display
• Pressure Test: Each bomb is tested at a pressure of 300 kg/cm2 for 10 minutes
• MOC (Bomb): Bomb body & lid are made of corrosion resistant Stainless Steel Alloy.
• MOC (Crucible): Made of corrosion resistant Stainless Steel Alloy
• MOC (Water Jacket): Static and made from Stainless Steel
• Regulating Valve: Fine Control regulator valve with Pressure Gauge
• Safety Valve: Safety relief valve for user safety comes as a standard feature
• Design & Standard: Designed as per fundamental Standards : BS-1016 - Part 5 (1967), BIS-1350 - Part 2 and IP - 12/63T
• Operating Time Per Test: Main Testing Period takes maximum of 15-20 minutes / test
• Oxygen Filling: Through a high pressure Schrader Valve
• Testing Temp. Range: Operating range from 5⁰C to 40⁰C
• Temperature Resolution: Temperature Scanning Resolution of 0.01⁰C
• R.S.D: 2-3%
• Range: Measurement Range : 1000 - 10000 cal/gm
• Gas Filling: Push - n - fit type filling system for user ease
• Digital Beckman Thermometer: Microprocessor Based Digital Beckman Thermometer directly indicating rise in temperature
• Oxygen Cylinder (Option): Oxygen cylinder 9-47 Ltrs capacity complete with dual stage regulator
