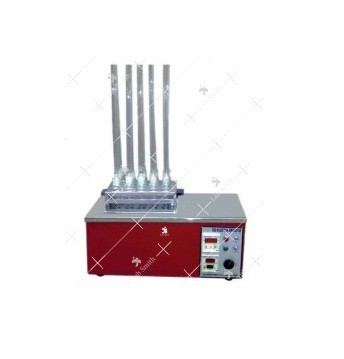

C.O.D Digestor (With Auto Time Controlled Semi-Automatic Controller) -439

Applications & Key Features

• Designed for digestion of COD test samples and multi-function dry bath heating.
• Precise temperature control from ambient +5^oC to 150 ^oC with +1^oC accuracy
• User's self-compensation functions for temperature to counter for difference between block temperature and sample temperature.

Constructions

• Fitted with MICROPROCESSOR BASED DIGITIAL TEMPERATURE INDICATOR-cum-CONTROLLER for auto control with respect to time and temperature and is also fitted with IN-BUILT BUZER TIMER for AUTO TIME CONTROL to indicate cycle end.
• Microprocessor Based Digital Temperature Indicator cum-Controller having individual display for set value and process value.
• Block is made of specially extruded aluminium block to accommodate 15 samples
• Complete with glass tube.
• Air condensers and utility tube rack.
• Recessed well/ cavity accommodates aluminium insert block.
• Samples after being digested for 2 hours can be analyzed using calorimeter or conventional titration method.
• High performance and user friendly controls combine to produce a specification which offers exceptional efficiency and reliability. The benefit to you-convenient, no fuss heating!
• Excellent temperature control.
• Uniform and stable heating.
• New compact size.

Technical Specifications:

• Controller: Microprocessor Based Digital Temperature Indicator cum-Controller with an in built digital timer and alarm.
• Display: LED with set value (SV) and Process Value (PV)
• Block Dimensions (LxWxH): 270X150X70mm
• Heater Load: 1.0 KW
• Tube Cavity: 40mm(Ø)x 65mm(D)
• No. of Cavities: 15 Holes to accommodate 15 samples
• Glass Tube Size: Supplied with 15 nos. of glass tubes of size 38mm (Ø) ×200mm (Length)
• Glass Air Condenser Size: Supplied with 15 nos. of air condensers of 600 m length each
• Sample Size: 20 ml
• Temperature Range: Ambient +5^OC to 150⁰C
• Temperature Accuracy: +1^OC
• Sensor: RTD (PT-100)
• Material External: Powder Coated CRC Steel
• Block: Polished Aluminium
• Tube Rack: 1 No.
• Timer (SAD) (Auto Time Control unit): Fitted with AUTOMATIC DIGITAL MINUTE TIMER which starts automatically when set/desired value of temperature is achieved. When the set time period is over the heaters get switched off automatically
• Buzzer: Alarm for cycle end
• Power Supply: 220V AC,
