DESCRIPTION:

The setup consists of constant temperature Bath with heating element. This Heat source is controlled with the help of digital temp controller at any preset valve. A thermocouple pocket is provided to insert the thermocouple in it. Three thermocouples i.e. CR/AL, Cu-constantan, Fe-constantan and Digital milivolt meter are also provided. All components are  assembled on a base plate to form a tabletop set-up.

EXPERIMENTATION:

• To calibrate the given thermocouples and to plot the calibration curve.

UTILITIES REQUIRED:

• Electricity Supply: 220 V AC, Single Phase, 0.5 kW.
• Table for set-up support.

TECHNICAL DETAILS:

Heat Source

Provide with ceramic insulation.

Temp. Controller

Digital Temperature Controller. 0-200°C

Thermocouple

Standard 3 types of thermocouple

a)            CR / Al

b)            Cu-Constantan

c)            Fe-Constantan

An ENGLISH instruction manual will be provided along with the Apparatus

The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No

Description

JIPC-012

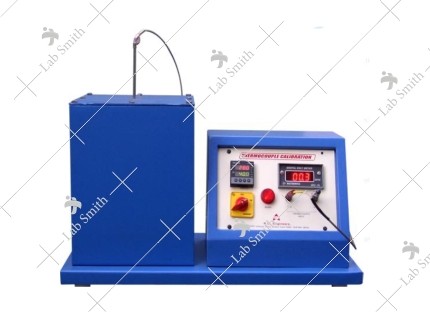

CALIBRATION OF THERMOCOUPLE
