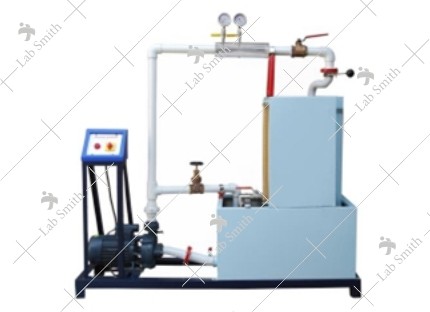

DESCRIPTION:The apparatus has been designed to demonstrate the phenomena of Cavitation. The present set-up consists of a test section made of Acrylic having conversion and diversion section. Pressure tapings at appropriate position are provided. This test section is having one control valve at upstream side to regulate the water flow rate. Two pressure gauges are connected to these taping which give the pressure readout at the time of flow passing through this test section.
The unit is self-contained close circuit type with sump tank, measuring tank and centrifugal pump. Flow through test section can be regulated with the help provided by-pass and control valve.
EXPERIMENTATION:- To observe the phenomena of cavitation.
- To compare the theoretical and actual pressures at cavitation condition
UTILITIES REQUIRED:- Water Supply: Initial Fill.
- Floor Drain Required.
- Floor Area Required: 1.5 m x 1 m.
TECHNICAL DETAILS:Test Section Material Acrylic Pressure Gauge 0-4 kg/cm2 Vacuum Gauge 0-760 mmHg Water Circulation By Pump Crompton make. Flow Measurement Using Measuring Tank (Capacity : 40 liters) and Electronic Stop Watch Sump Tank Capacity : 60 liters Control Panel Comprises of Standard make On/Off Switch, Mains Indicator, etc. Tanks will be made of Stainless Steel. An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. Ordering Details:Catalogue No Description JIHD-015 CAVITATION APPARATUS - Additional Information
-
