CENTRIFUGAL PUMP TEST RIG (Variable Speed with DC Motor)

CENTRIFUGAL PUMP TEST RIG (Variable Speed with DC Motor)

More Views

CENTRIFUGAL PUMP TEST RIG (Variable Speed with DC Motor)

Code:

DESCRIPTION:

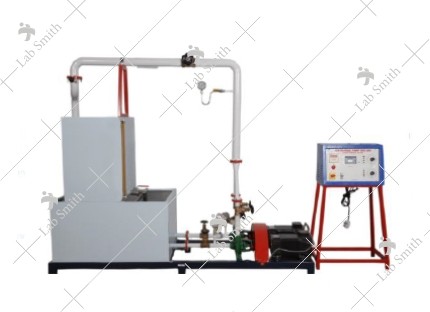

The present Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Centrifugal pump coupled with a DC Motor. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.


EXPERIMENTATION:

To determine total head, Pump Output, overall efficiency and pump efficiency of the centrifugal pump.
To plot Head vs Discharge, Pump efficiency vs Discharge, Pump Output vs Discharge.

UTILITIES REQUIRED:

Water Supply.
Drain.
Electricity 1 kW, 220V AC, Single Phase.
Floor Area 2 x 1 m.

TECHNICAL DETAILS:

Pump (2 Nos.)	Kirloskar Make, Capacity 1 HP;Speed 2800 RPM (max.), Head 12 m (max.)
Medium Flow	Clear Water
Drive	1 HP DC Motor with Thyristor controlled DC drive for variable speed.
Sump Tank	Capacity 110 Ltrs.
Measuring Tank	Made of Stainless Steel, Compatible capacity
Flow Measurement	Using Measuring Tank with Piezometer, Capacity 70 Ltrs
Stop watch	Electronic.
Pressure Gauge	Bourdon type
Control Panel Comprises of
Energy measurement	Electronic Energy meter, L&T make.
RPM measurement	RPM Indicator with Proximity sensor.
Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
