DESCRIPTION:

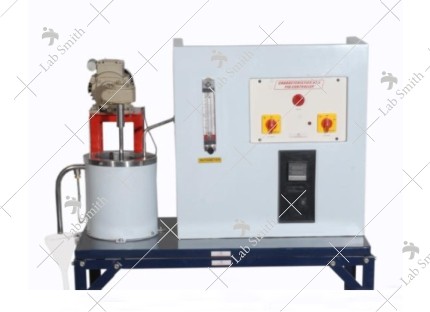

The present set-up is designed to study the characteristics of a PID controller. It consists of a stirred tank in which a heater is provided to heat the water. Water is supplied to the tank from laboratory overhead tank by the user. The flow rate can be adjusted by operating the needle valves provided on Rotameter. PID parameters can be changed for conducting experiment on P, PI, PD and PID mode. Controller can be operated on Auto Tune mode in which controller automatically fixes the value of P, I and D. Temperature is sensed by the PID Controller and the controller gives input to the heater, accordingly. Experiment can be performed on various flow rates and temperature set points.

EXPERIMENTATION:

• To study the behaviour of an PID controller.

• UTILITIES REQUIRED:
• Water Supply at 100 LPH (max.)
• Floor Drain.
• Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
• Table for setup support

TECHNICAL DETAILS:

Ordering Details:
