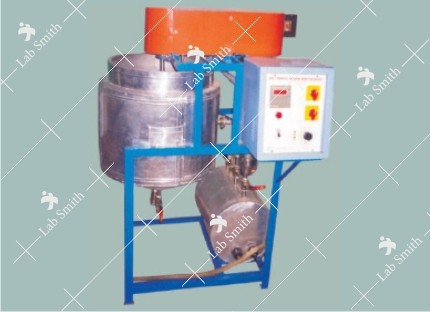

COMPUTER CONTROLLED - HEAT TRANSFER IN AGITATED VESSEL (With Data Logging Facility)

COMPUTER CONTROLLED - HEAT TRANSFER IN AGITATED VESSEL (With Data Logging Facility)

More Views

COMPUTER CONTROLLED - HEAT TRANSFER IN AGITATED VESSEL (With Data Logging Facility)

Code:

DESCRIPTION:

In most industrial processes including reactors, heat is to be added or extracted to control the process. The addition and removal of heat is done by passing steam or water in a jacket fitted to the outside of the vessel or passing steam or cold water in helical coil inside the vessel. For effective heat transfer and even distribution of heat, the liquid inside is continuously agitated. The present set-up offers us a comparative study of Jacket & Helical coil, which can be operated simultaneously. It is a stainless steel jacketed vessel with helical coil of copper is fitted inside. A variable speed stirrer is fitted in the vessel. Variation in temperature of inside water is measured and is noted. Set-up is fitted with steam traps for condensate collection. Flow rate of water can be controlled and measured using valve and Rotameter. Temperature of inlet and outlet of both hot & cold fluids are measured by temperature sensors.


The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.


EXPERIMENTATION:

To determine the overall heat transfer co-efficient for various degree of agitation.
To make a comparative study of Heat Transfer through Jacket & Coil in an agitated vessel.

UTILITIES REQUIRED:

Water supply 20 lit/min (approx.) and Drain.
Electricity Supply: 1 Phase, 220 V AC, 5 kW.
Floor area: 1.5m x 1.5m.
Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD

TECHNICAL DETAILS:

System	Steam to Water
Vessel	Material stainless steel fitted with 4 baffles Dia. 250, Depth 350 mm (Approx.)
Jacket	Width 25 mm. Insulated with ceramic wool and cladded with aluminum foil.
Helical Coil	Material Copper, OD 16mm, ID 13mm.
Agitator	Stainless steel Impeller fitted on a shaft coupled to a variable speed motor and Drive.
Water Flow Measurement	By flow sensor
Steam Generator	Material stainless steel fitted with level indicator, pressure Gauge, safety valve, drain and insulated with ceramic wool & cladding with Aluminium foil.
Heaters	Nichrome wire heater (2 Nos.)
Condensate Measurement	Measuring Cylinder & Stopwatch
Heating Control	Special arrangement to control heat input
Control panel comprising of
Digital Temp. Controller	PID Controller, 0-199.9°C (For Steam Generator)
Temperature Measurement	By Temperature transmitter, Output 4-20 mA -5Nos.
Temperature Sensors	RTD PT-100 type-5Nos.
RPM Indicator	Standard make Digital, Non Contact type.
With standard make On/Off switch, Mains Indicator etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHT-005	HEAT TRANSFER IN AGITATED VESSEL
