DESCRIPTION:

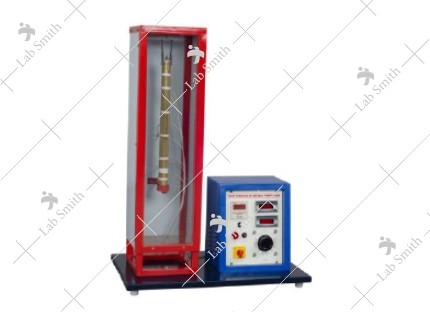

The setup consists of a brass tube fitted in a rectangular duct in a vertical position. The duct is open at the top and bottom, and forms an enclosure that serves the purpose of undisturbed surrounding. One side of the duct is fitted with a transparent acrylic window for visualization. An electric heating element is kept in the vertical tube that in turns heats the tube surface. The heat is lost from the tube to the surrounding air by natural convection. The temperature of the vertical tube is measure by temperature sensors and displayed by a Digital Temperature Indicator with multi-channel switch. The heat input to the heater is measured by a Digital Ammeter and a Digital Voltmeter and is varied by a variac. The tube surface is polished to minimize the radiation losses.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Labview of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To determine average heat transfer coefficient under natural convection.

UTILITIES REQUIRED :

• Electricity Supply : 1 Phase, 220 V AC, 2 Amp.
• Table for set-up support
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS :

Ordering Details:

JIHT-1052

COMPUTER CONTROLLED - HEAT TRANSFER IN NATURAL

CONVECTION(With Data Logging Facility)
