DESCRIPTION:

Homogeneous reaction:

An isothermal semi-batch reactor is a semi-closed system with one input stream. It is operated under conditions like Isothermal (Temperature of Reaction Mass remains constant) and perfectly mixed (composition of reaction mixture is uniform throughout). This set-up is used to study a non-catalytic homogeneous reaction under isothermal condition.

The set up consists of a Reactor fitted in a constant temperature water bath. Before starting the reaction the reactor is charged with measured quantity of one reactant. From a feed tank another reactant is fed to the reactor. Using a sampling pipette samples can be taken out for analysis after fixed interval. Peristaltic pump is provided to measure the flow of Chemicals. One stirrer is fitted for mixing the reactants in reactor and other is fitted in water bath to keep the uniform temperature throughout in the bath. The temperature of bath can be maintained from ambient to 70°C with the help of Digital Temperature Controller.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

1. To study a second order sponification reaction in a Semi-Batch Reactor.
2. To determine the Reaction Rate Constant.

UTILITIES REQUIRED:

• Water Supply
• Floor Drain.
• Electricity-1.5kw, Single.
• Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted.
• Computer System: Pentium IV with DVD Drive, Windows XP, MS-Office XP version pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:

JICRE-1008

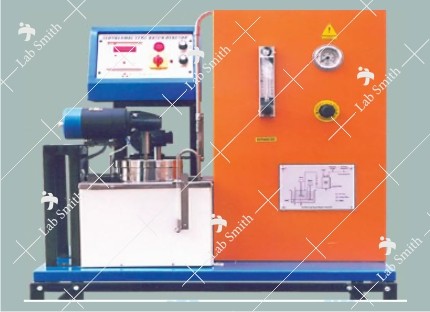

COMPUTER CONTROLLED - ISOTHERMAL SEMI-BATCH REACTOR

(With Data Logging Facility)
