DESCRIPTION:

RTD Reactions:

Real reactors do not satisfy the idealized flow patterns, back mix flow or plug flow deviation from ideality can be due to channelling of fluid through the vessel, recycling of fluid within the vessel or due to the presence of stagnant region or pockets of fluid in the vessel. To predict the exact behavior of a vessel as a Chemicals reactor, RTD or stimulus response technique is used.

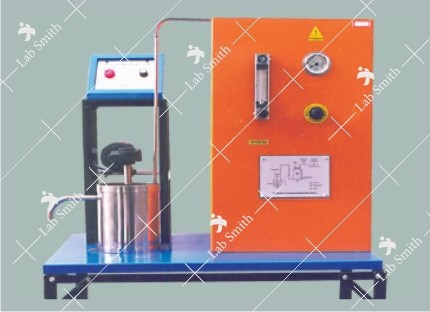

The setup consists of one feed tank through which water is fed to the reactor. The flow rate can be varied by changing the speed of peristaltic pump. The continuously stirred tank reactor made of Stainless Steel is provided for understanding the R.T.D. characteristics.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

1. To plot RTD curve for a CSTR. Using pulse tracer.
2. To determine the Dispersion No.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Electricity Supply: 1 Phase, 220 V AC, 0.5 kW.
• Instruments, Laboratory Glassware and Chemicals required for analysis as per the system adopted.
• Computer System : Pentium IV with DVD Drive, Windows XP, MS-Office XP version pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:

JICRE-1014

COMPUTER CONTROLLED - RTD STUDIES IN CONTINUOUS STIRRED
TANK REACTOR(With Data Logging Facility)
