Polymerization Reaction:

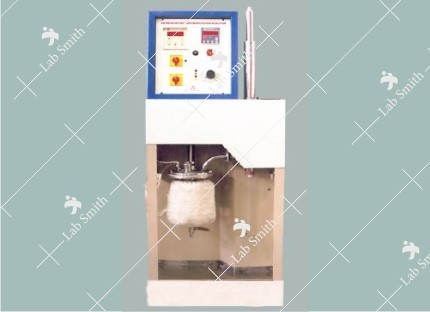

Condensation Polymerization kettle is used to carry out a condensation polymerization reaction under batch condition. Polymerization reaction can be acid catalyzed or self-catalyzed. The set-up can be used to measure the extent of reaction & also the reaction rate constant. The set-up consists of jacketed type SS reactor fitted with variable speed agitator & baffles. Reactor is fitted with Nichrome wire heaters and temperature is controlled by digital temperature controller. Metered quantity of nitrogen gas from a cylinder, allowed entering in the reactor. Set-up is complete & self-contained with sampling ports. The top cover can be removed for cleaning purpose. Feed is fed from top through a funnel provided with S.S. Ball Valve. An outlet is given to Condenser fitted with a Perken's triangle for collecting the condensate. Vapours are allowed to enter in the shell ofcondenser and cooling water is allowed to pass through the tube and condensate is collected.

EXPERIMENTATION:

• To study the kinetics of Condensation Polymerization in a Batch Reactor under isothermal condition. To calculate the rate constant and extent of reaction with and without acid catalyst.

UTILITIES REQUIRED:

• Water Supply
• Floor Drain.
• Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 Amp. Combined socket with earth connection.
• Floor Area : 1.5 x 1 m
• Instruments, Laboratory wares and Chemicals required for analysis as per the system adopted. High purity N2 Gas Cylinder with pressure regulator, end connection 1/4" BSP female.

TECHNICAL DETAILS:

Reactor

(Jacketed Type)

Material Stainless SteelTotal volume of Reactor 2 Ltrs. (approx.)
