Owing to our rich industrial experience, we have been a reliable manufacturer of Control Panel To Find Xd And Xq Of A Salient Pole to our widely spread clients. It finds application for electrical machine lab depending upon the diverse requirements. It is fabricated using high grade raw material and progressive machinery as per the prevailing industrial norms and standards. Control Panel To Find Xd And Xq Of A Salient Pole goes through various quality inspections to make sure that no compromise is done with its quality at any stage.

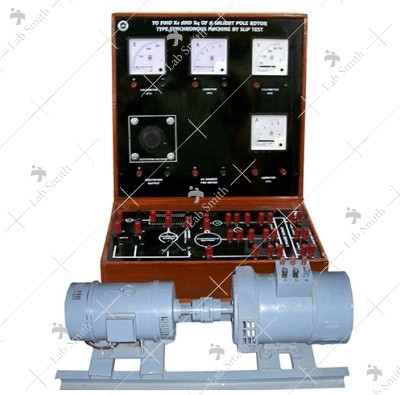

“Lab Smith made Control Panel To Find Xd  And Xq of A Salient Pole Rotor Type Synchronous Machine By Slip Test” has been designed to study the  Xd And Xq of A Salient Pole Rotor Type Synchronous Machine By Slip Test

The instrument comprises of the following built in parts:

• One No. of AC Voltmeter Range 0-300V of size 96×96mm provided on the front panel.
• One No. of AC Current Meter Range 0-3A of size 96×96mm provided on the front panel.
• One No. of DC Current Meter Range 0-10A of size 96×96mm provided on the front panel.
• One no. of DC Voltmeter 0-300V of size 96×96mm provided on the front panel.
• One No. of Variac for Speed Variation.
• One no. of Line connector provided on the left side of the control panel.
• One no. of MCB/DP provided on the left side of the front panel.

STANDARD ACCESSORIES

Single point Patchcords for Interconnections (Electrical)

16 Nos.

Single point 2 Meter Electrical patchcords

 07 Nos.

Instruction Manual (DOC 2445A)

 01 Nos.

Three Phase 4 Amp closed Type

01

Ordering Details:

Catalogue No.

Description

LEE-2035

Control Panel To Find Xd And Xq Of A Salient Pole
