DESCRIPTION:

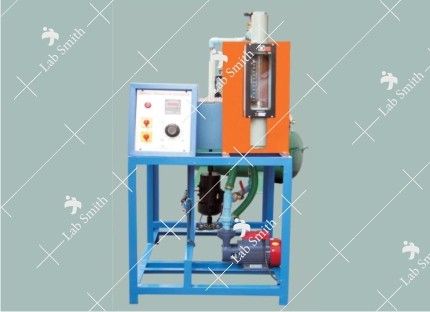

The set-up is designed to study Coriolli's Component of Acceleration of a slider crank mechanism. Here the mechanical slider system is replaced by a continuous stream of water flowing through a steady rotating pair of tubes. These tubes can be rotated at various speeds by using a swinging field motor which also acts as dynamometer. A Perspex window on top of the tank gives clear view of the process and prevents splash of the water over the side of the tank. The dynamometer continuously measures torque applied to the rotating tubes. The equipments is self contained, water re-circulating, provided with its own speed control unit and water circulating pump.

EXPERIMENTATION:

• To determine Coriolli's Component of Acceleration at various speeds of rotation and water flow rates.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Electricity supply : 220 V, Single Phase, 0.5 kW.
• Area: 2 m x 2 m.
