DARCY'S LAW APPARATUS

DARCY'S LAW APPARATUS

More Views

DARCY'S LAW APPARATUS

Code:

DESCRIPTION:

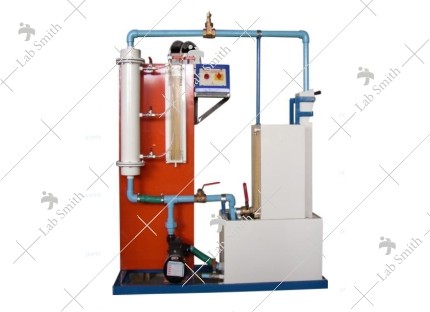

The set-up consists of a Cylinderical test section filled with pourous medium. Pressure tappings are provided in the test section to measure the pressure drop with the help of differential manometer.


Present set-up is self-contained water re-circulating unit, provided with a sump tank and a  centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.


EXPERIMENTATION:

To verify Darcy’s law.
To find out the coefficient of permeability of a given medium.

UTILITIES REQUIRED:

Electricity Supply: Single Phase, 220V AC, 50Hz, 5-15 amp combined socket with earth connection.
Water Supply (Initial Fill).
Floor Drain required.
Floor Area required: 1.5 m x 0.75 m
Mercury (Hg) for manometer (250 gm)

TECHNICAL DETAILS:

Test Section	Material Stainless Steel Dia 120 mm approx., Height 500 mm.
Water Circulation	FHP Pump, Crompton make.
Sump Tank	Capacity 50 Ltrs.
Flow Measurement	Using Measuring Tank (Capacity 25 Ltrs. approx.) with Electronic Stop Watch
Control Panel Comprises of	Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-022	DARCY'S LAW APPARATUS

Description

Details

DESCRIPTION:

The set-up consists of a Cylinderical test section filled with pourous medium. Pressure tappings are provided in the test section to measure the pressure drop with the help of differential manometer.


Present set-up is self-contained water re-circulating unit, provided with a sump tank and a  centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.


EXPERIMENTATION:

To verify Darcy’s law.
To find out the coefficient of permeability of a given medium.

UTILITIES REQUIRED:

Electricity Supply: Single Phase, 220V AC, 50Hz, 5-15 amp combined socket with earth connection.
Water Supply (Initial Fill).
Floor Drain required.
Floor Area required: 1.5 m x 0.75 m
Mercury (Hg) for manometer (250 gm)

TECHNICAL DETAILS:

Test Section	Material Stainless Steel Dia 120 mm approx., Height 500 mm.
Water Circulation	FHP Pump, Crompton make.
Sump Tank	Capacity 50 Ltrs.
Flow Measurement	Using Measuring Tank (Capacity 25 Ltrs. approx.) with Electronic Stop Watch
Control Panel Comprises of	Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-022	DARCY'S LAW APPARATUS
