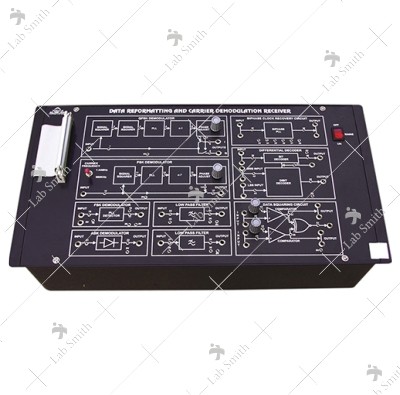

We are a proud supplier of a qualitative array of Data Reformatting & Carrier Demodulation Receiver to our huge clientele base. It finds application in scientific industry to fit the varied purposes. High grade raw material and advanced machinery is used in its making at our unit in sync with the set industrial standards and norms. Data Reformatting & Carrier Demodulation Receiver has gained us huge appreciation from our clients leading to high rising demands among that of our competitors.

Objective:

Conversion of different data formats to NRZ data formats ASK, FSK, PSK, DPSK, & QPSK carrier demodulation techniques

Technical Specifications:

• In built IC based DC regulated power supply +12V, +5V / 250mA

• Input:             Input from ME 774

• Output:          2 Channels TDM Multiplexed data stream

• Demodulation: NRZ (M), RZ, AMI, RB, Biphase(Manchester), Options Biphase (MARK) Differentially encoded dibit to NRZ (L)

• Carrier:                      a) ASK Rectifier Diode

• De – modulation:     b) FSK PLL Detector

• PSK & DPSK Square Loop Detector

• QPSK Forth Power Loop Detector

• Biphase clock receiver by PLL

• On board test point 54

• Glass Epoxy PCB used as front panel of 400mm x 225mm & mounted on light weight shock proof plastic cabinet.

• Block diagram printed on Glass Epoxy PCB & all important test points brought out on front panel

• Power requirement:         220 VAC +10%, 50Hz

• Weight:                           2.5Kg Approx.

• Dimensions:                          430mmx230mmx90mm

Standard Accessories:

Power Chord, Patch Chords & Instruction Manual
