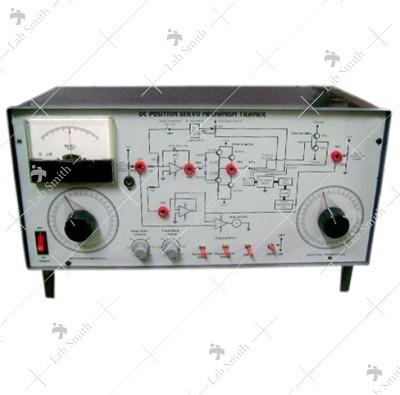

We are an eminent supplier of DC Position Servo Mechanism Trainer to our highly valued clients. It is precisely designed using high grade raw material and technologically advanced machinery at our vendors’ unit in compliance with the prevailing industrial norms and standards. We conduct various quality tests at our unit in order to assure utmost quality, durability, performance and easy operations of our DC Position Servo Mechanism Trainer. We offer it to our clients at pocket- friendly prices in the market.Objective:-
Study the working and principle of DC Servo Motor. -
Servo Potentiometer for position sensing. -
Servo potentiometer as an error detector.
Technical Specifications:Control Unit Inbuilt fixed DC Regulated power supply + 12VDC Inbuilt fixed DC supply 20 VDC Null meter for measurement of angle Control Switches 5 Nos. Test Point 5 Nos. Power requirement 220 VAC +10%, 50Hz Dimensions (mm) 430( L) x 230(B) x 90(H) Motor Unit DC Servo Motor having both side shafts. One end coupled with Techo generator & other end coupled loading arrangement with potentiometer Front panel of 400mm x 225mm & mounted on light weight shock proof plastic cabinet. Circuit diagram printed on panel & all important test points are brought out on front panel.
Standard Accessories:- Motor Unit, Power Chord, Patch Chords & Instruction Manual.
Ordering Details:Catalogue No. Description LEC-3450 DC Position Servo Mechanism Trainer -
