- Description
-
Details

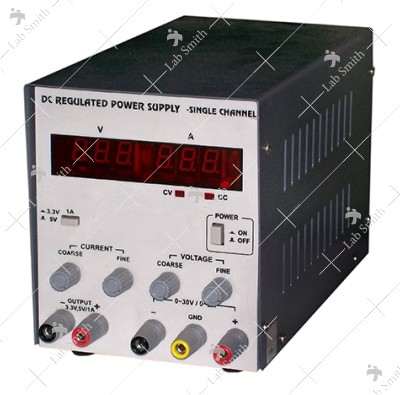

We are a noted supplier of DC Regulated Power Supply Single Channel to our highly respected clients. It finds application at various places as scientific instrument depending upon the requirements of diverse patrons. Finest quality raw material is used in its fabrication at our vendors’ unit and processed using hi tech machinery. This process is undergone under the vigilant eye of experts, ensuring no defect with our DC Regulated Power Supply Single Channel. We have gained huge applaud from our clients for the same.Features :- 0 ~ 30VDC/2A
- High accuracy, high stability
- Over load & short circuit protection
- Allow full scale long time operation
- Voltage and current continuously variable within nominal Value
- CC/CV indication
Technical Specifications:
Variable Output Output Voltage 0 ~ 30VDC Output Current 0 ~ 2A Source Regulation < 0.05% +10mV Load Regulation < 0.05% +10mV Ripple & Noise <1mV (rms) Digital Display 3 digit voltage & current display Accuracy +1%, +1 Digit Fixed Output Output Voltage Fixed 5VDC/3.3VDC Output Current 1A Source Regulation <5mV Load Regulation <15mV Ripple & Noise <2mV (rms) Power requirement 220 VAC +10% , 50 Hz Weight 4.0Kg Approx. Dimensions (mm) 120(L) x 250(B) x 150(H)
Standard Accessories:Power cable, Instruction manualOrdering Details:Catalogue No. Description LTM-5020 DC Regulated Power Supply Single Channel - Additional Information
-
Additional Information
Code No - Reviews
-
