- Description
-
Details

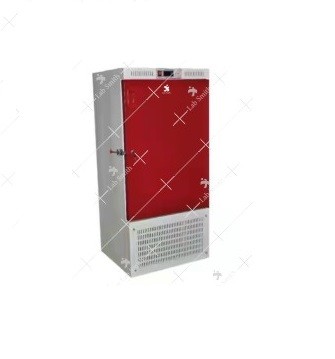

Deep Freezer Vertical -135 V
Application
- Useful for low temperature quick freezing and storing of Vaccines, Biological and medical specimens,
- Blood Components and general laboratory freezing applications.
Constructional And Salient Features
- Cooling coils are placed between foamed-in-place PUF insulation and inner side of stainless steel chamber eliminating any chances of FROST FORMATION on the evaporator which leads to choking of COMPRESSOR/CONDENSING UNIT.
- Useful for low temperature quick freezing and storing of Vaccines, Biological and medical specimens,
- Blood Components and general laboratory freezing applications.
- High density foamed-in-place polyurethane foam (PUF) insulation for minimal cooling losses.
- Evenly spread evaporator accounts for higher temperature uniformities throughout the cooling
- chamber
- Specially designed DEEP FREEZER VERTICAL LATCHES to keep the door tightly locked eliminating chances of Any cooling loss.
- Outer made of powder coated CRC Steel Sheet.
- Inner chamber and trays made of stainless steel (SS-304).
- Caster wheel mounted for easy mobility.
- ECO FRIENDLY COMPRESSOR with CFC-FREE refrigerant.
- Fitted with Microprocessor Based Digital Temperature Indicator-cum-Controller with in-built HI/LOW
- Temperature deviation alarm.
Technical Specifications:
- Temperature range (in AC Room):Ambient to -20oC or -30oC or -40 oC (as ordered)
- Temperature Accuracy: +1oC
- MOC Outer: Powder Coated CRC Steel Sheet
- MOC Inner:Chamber and trays made of Stainless Sheet (SS-304)
- Insulation:High Density PUF insulation for tighter temperature controls.
- Temperature Control:Microprocessor based Digital Temperature Indicator-cum-Controller with in-built HI/LOW Temperature deviation alarm.
- Display: Digital LED/LCD Set value (SV) & Process value (PV) (as per ordered)
Ordering Information (For Deep Freezer Vertical Temperature Range Upto - 20oc):
Cat. No.
Display Type
Volume
Capacity
LI-43100/1
Deep Freezer Vertical, with LED
4.0 Cuft
112 ltrs
LI-43100/2
Deep Freezer Vertical, with LED
6.0 Cuft
171 ltrs
LI-43100/3
Deep Freezer Vertical, with LED
10.0 Cuft
280 ltrs
LI-43100/4
Deep Freezer Vertical, with LED
12.0 Cuft
340 ltrs
LI-43100/5
Deep Freezer Vertical, with LED
15.0 Cuft
420 ltrs
LI-43100/6
Deep Freezer Vertical, with LED
16.0 Cuft
450 ltrs
LI-43100/7
Deep Freezer Vertical, with LED
18.0 Cuft
500 ltrs
LI-43100/8
Deep Freezer Vertical, with LED
20.0 Cuft
560 ltrs
LI-43100/9
Deep Freezer Vertical, with LED
23.0 Cuft
650 ltrs
LI-43100/10
Deep Freezer Vertical, with LED
25.0 Cuft
700 ltrs
LI-43100/11
Deep Freezer Vertical, with LED
30.0 Cuft
840 ltrs
LI-43100/12
Deep Freezer Vertical, with LED
36.0 Cuft
1000 ltrs
LI-43100/13
Deep Freezer Vertical, with LED
50.0 Cuft
1410 ltrs
LI-43100/14
Deep Freezer Vertical, with LCD
4.0 Cuft
112 ltrs
LI-43100/15
Deep Freezer Vertical, with LCD
6.0 Cuft
171 ltrs
LI-43100/16
Deep Freezer Vertical, with LCD
10.0 Cuft
280 ltrs
LI-43100/17
Deep Freezer Vertical, with LCD
12.0 Cuft
340 ltrs
LI-43100/18
Deep Freezer Vertical, with LCD
15.0 Cuft
420 ltrs
LI-43100/19
Deep Freezer Vertical, with LCD
16.0 Cuft
450 ltrs
LI-43100/20
Deep Freezer Vertical, with LCD
18.0 Cuft
500 ltrs
LI-43100/21
Deep Freezer Vertical, with LCD
20.0 Cuft
560 ltrs
LI-43100/22
Deep Freezer Vertical, with LCD
23.0 Cuft
650 ltrs
LI-43100/23
Deep Freezer Vertical, with LCD
25.0 Cuft
700 ltrs
LI-43100/24
Deep Freezer Vertical, with LCD
30.0 Cuft
840 ltrs
LI-43100/25
Deep Freezer Vertical, with LCD
36.0 Cuft
1000 ltrs
LI-43100/26
Deep Freezer Vertical, with LCD
50.0 Cuft
1410 ltrs
Ordering Information (For Deep Freezer Vertical Temperature Range Upto - 30oc):
Cat. No.
Display Type
Volume
Capacity
LI-43100/27
Deep Freezer Vertical, with LED
4.0 Cuft
112 ltrs
LI-43100/28
Deep Freezer Vertical, with LED
6.0 Cuft
171 ltrs
LI-43100/29
Deep Freezer Vertical, with LED
10.0 Cuft
280 ltrs
LI-43100/30
Deep Freezer Vertical, with LED
12.0 Cuft
340 ltrs
LI-43100/31
Deep Freezer Vertical, with LED
15.0 Cuft
420 ltrs
LI-43100/32
Deep Freezer Vertical, with LED
16.0 Cuft
450 ltrs
LI-43100/33
Deep Freezer Vertical, with LED
18.0 Cuft
500 ltrs
LI-43100/34
Deep Freezer Vertical, with LED
20.0 Cuft
560 ltrs
LI-43100/35
Deep Freezer Vertical, with LED
23.0 Cuft
650 ltrs
LI-43100/36
Deep Freezer Vertical, with LED
25.0 Cuft
700 ltrs
LI-43100/37
Deep Freezer Vertical, with LED
30.0 Cuft
840 ltrs
LI-43100/38
Deep Freezer Vertical, with LCD
4.0 Cuft
112 ltrs
LI-43100/39
Deep Freezer Vertical, with LCD
6.0 Cuft
171 ltrs
LI-43100/40
Deep Freezer Vertical, with LCD
10.0 Cuft
280 ltrs
LI-43100/41
Deep Freezer Vertical, with LCD
12.0 Cuft
340 ltrs
LI-43100/42
Deep Freezer Vertical, with LCD
15.0 Cuft
420 ltrs
LI-43100/43
Deep Freezer Vertical, with LCD
16.0 Cuft
450 ltrs
LI-43100/44
Deep Freezer Vertical, with LCD
18.0 Cuft
500 ltrs
LI-43100/45
Deep Freezer Vertical, with LCD
20.0 Cuft
560 ltrs
LI-43100/46
Deep Freezer Vertical, with LCD
23.0 Cuft
650 ltrs
LI-43100/47
Deep Freezer Vertical, with LCD
25.0 Cuft
700 ltrs
LI-43100/48
Deep Freezer Vertical, with LCD
30.0 Cuft
840 ltrs
Ordering Information (For Deep Freezer Vertical Temperature Range Upto - 40oc):
Cat. No.
Display Type
Volume
Capacity
LI-43100/49
Deep Freezer Vertical, with LED
4.0 Cuft
112 ltrs
LI-43100/50
Deep Freezer Vertical, with LED
6.0 Cuft
171 ltrs
LI-43100/51
Deep Freezer Vertical, with LED
10.0 Cuft
280 ltrs
LI-43100/52
Deep Freezer Vertical, with LED
12.0 Cuft
340 ltrs
LI-43100/53
Deep Freezer Vertical, with LED
15.0 Cuft
420 ltrs
LI-43100/54
Deep Freezer Vertical, with LED
16.0 Cuft
450 ltrs
LI-43100/55
Deep Freezer Vertical, with LED
18.0 Cuft
500 ltrs
LI-43100/56
Deep Freezer Vertical, with LED
20.0 Cuft
560 ltrs
LI-43100/57
Deep Freezer Vertical, with LCD
4.0 Cuft
112 ltrs
LI-43100/58
Deep Freezer Vertical, with LCD
6.0 Cuft
171 ltrs
LI-43100/59
Deep Freezer Vertical, with LCD
10.0 Cuft
280 ltrs
LI-43100/60
Deep Freezer Vertical, with LCD
12.0 Cuft
340 ltrs
LI-43100/61
Deep Freezer Vertical, with LCD
15.0 Cuft
420 ltrs
LI-43100/62
Deep Freezer Vertical, with LCD
16.0 Cuft
450 ltrs
LI-43100/63
Deep Freezer Vertical, with LCD
18.0 Cuft
500 ltrs
LI-43100/64
Deep Freezer Vertical, with LCD
20.0 Cuft
560 ltrs
Options:
Cat. No.
Capacity KVA
LI-43101/1
Voltage Stabilizer, 3 KVA
LI-43101/2
Voltage Stabilizer, 4 KVA
LI-43101/3
Voltage Stabilizer, 5 KVA
LI-43101/4
Voltage Stabilizer, 7.5 KVA
LI-43101/5
Voltage Stabilizer, 10 KVA
