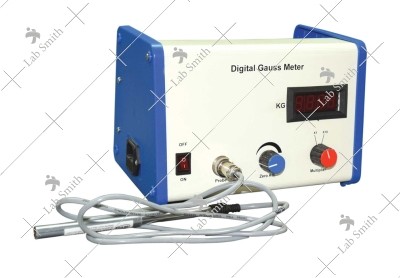

Digital Gauss Meter

Digital Gauss meter works on the principle of Hall Effect in semiconductor. When a semiconductor with current flowing in one direction is introduced perpendicular to a magnetic field a voltage is produced at right angles to the current path. The magnitude of this voltage is proportional to the intensity of the magnetic field. This voltage is called Hall Voltage. This Hall voltage is amplified and calibrated as magnetic field.

Specifications:
Range: 0-2KG & 0-20KG
Resolution: 1G at 0-2KG range
Display: 3½digit LED
Power Supply: 220 V, ±10%, 50 Hz AC
Transducer: Hall probe-InAs

Ordering Information:
