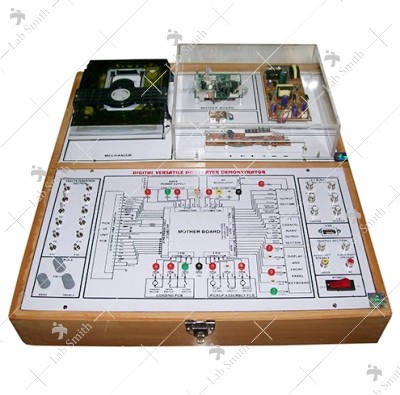

We are one of the trusted suppliers of Digital Versatile Disc Player Demonstrator to our huge clientele base. It is precisely designed for use in scientific industry. High quality raw material is used along with the help of latest tools and equipment in its making at our vendors’ unit. Digital Versatile Disc Player Demonstrator is applauded for its performance, accuracy, easy usage, fine finishing and a long functional life. We offer this demonstrator at cost- effective prices in the market.

Objective:

• To study working principle of DVD Player

• To study practical & theoretical aspects of DVD player circuitry

• To study signals & voltages in different sections

Technical Specifications:

• Standard : PAL, NTSC

• Inbuilt power supplies +12VDC, -12VDC, +5VDC

• Inbuilt Audio Power Amplifier of 80 watts using IC 4440 with bass treble

• Inbuilt speakers 8W (Left & Right)

• Viewable DVD Mechanism and Mother Board in acrylic box

• LCD display and control keys on front panel

• Complete block diagram of DVD Player on front panel

• Audio-Video, RF& 5.1 Audio Output sockets provided on front panel

• 12 Fault switches for observation of various faults in DVD Player

• 20 Test Points for observation of voltages & waveform in various section

• Complete view of DVD loading system & mother board

• Complete block diagram printed on front panel

• Power requirement: 220 VAC +10% , 50 Hz

• Weight : 10.0Kg Approx.

Standard Accessories:

Power Chord, AV Signal Lead, RF Signal Lead, Demo DVD, Remote Control with Cell, & Instruction Manual

Ordering Details:
