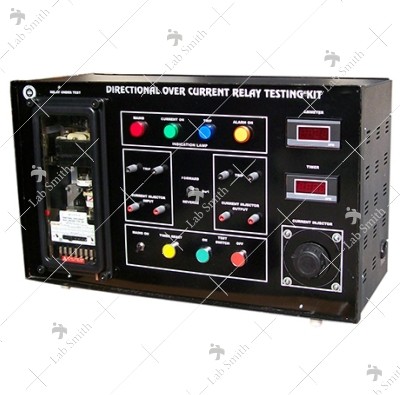

We are one of the leading suppliers of Directional Over Current Relay Testing Kit to our widely scattered clients. It is obtained from our dependable vendors who make use of supreme quality material and machinery in its making under the professional guidance and supervision. Our team also conducts various inspections to make sure that Directional Over Current Relay Testing Kit stands in sync with the prevailing global norms and standards. We offer it at highly economical prices in the market.Objective:-
To study the construction of relay -
To obtain the time & current characteristics of a directional over current induction disc type relay
Technical Specifications:Relay Type Directional Over Current Relay (Electromechanical Induction Disc Type) Terminals 4mm Terminals for Trip,Current Output and Input Meters (Digital) 1No. AC Current Meter 0 – 20Amps& 1 No. Digital Timer .0001sec. to 9999sec. (Auto) (96mm x 48 mm) Current Injector Inbuilt variable current injector 20Ampsto create Phantom Fault Current Indicators Provided on front panel for Mains,Current, Trip and Alarm Switches Provided on front panel for Mains,Timer Reset, Test Switch (ON/OFF) Reversing Switch To reverse the direction of current Relay Circuit Diagram Screen Printed on front panel Weight 40Kgs Approx. Power Requirement 220VAC +10%, 50Hz
Standard Accessories:Power Cords, Patch Cords, Instruction Manual.
Ordering Details:Catalogue No. Description LEE-2195 Directional Over Current Relay Testing Kit -
