DESCRIPTION:

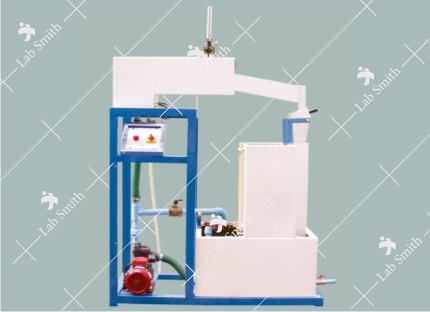

The setup consists of a channel having sufficient length and width in which water is supplied from the bottom. Required Notch is fitted at one end of this channel. A pointer gauge with Vernier scale is fitted to measure the height of fluid in flow channel. Arrangement for fixing interchangeable notches is made. Set of three notches, i.e. rectangular notch, 60 V notch & 45 V notch is provided along with the set-up.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by- pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stopwatch.

EXPERIMENTATION:

To determine co-efficient of discharge (Cd) through:

• V notch 45°
• V notch 60°
• Rectangular Notch.

UTILITIES REQUIRED:

• Water Supply.
• Floor Drain.
• Electricity 0.5 kW, 220V AC, Single Phase.
• Floor Area 1.5 x 0.75 ml

TECHNICAL DETAILS:

Channel Test Section

Size 600 x 250 x 180 mm.

Notches

Material Brass

1.            Rectangular Notch

2.            45° V Notch

3.            60° V Notch

Pointer Gauge

With Vernier scale.

Water Circulation

FHP Pump Crompton make.

Flow Measurement

Using Measuring Tank with Piezometer, Capacity 25 Ltrs.

Stop watch

Electronic.

Sump Tank

Capacity 50 Ltrs.

Control Panel Comprises of

Standard make On/Off Switch, Mains Indicator, etc.

Tanks will be made of Stainless Steel.

An ENGLISH instruction manual consisting of experimental procedures, block diagram etc.
will be provided along with the Apparatus

The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:
