Details
DESCRIPTION:

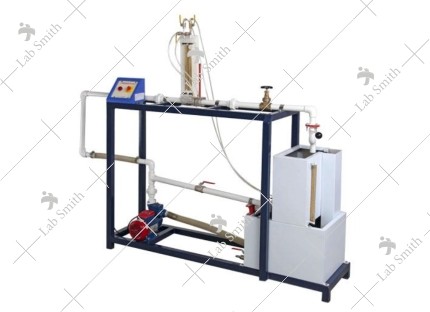

The apparatus consists of a pipe line contains one Orificemeter. Orificemeter is made from Clear Acrylic. The pressure tapings from the Orifice meter is taken to differential manometer to measure pressure difference. A valve is provided at the downstream side of Orificemeter. The flow can be regulated by this valve.
Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.
EXPERIMENTATION:
- To determine co-efficient of discharge of Orificemeter.
UTILITIES REQUIRED:
- Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp/ combined socket with earth
- connection.
- Water Supply (Initial Fill).
- Floor Drain.
- Floor Area Required: 1.5 x 0.75 m.
TECHNICAL DETAILS:
| Orificemeter |
Orifice plate made of Stainless Steel and Housing made of Clear Acrylic compatible to 1” Dia. Pipe. |
| Water Circulation |
FHP Pump Crompton make. |
| Flow Measurement |
Using Measuring Tank with Piezometer (Capacity 25 Ltrs.) and Electronic Stop Watch |
| Sump Tank |
Capacity 50 Ltrs. |
| Control Panel Comprises of |
Standard make On/Off Switch, Mains Indicator, etc. |
| Tanks will be made of Stainless Steel. |
| An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus |
| The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint. |
Ordering Details:
| Catalogue No |
Description |
| JIHD-007 |
DISCHARGE THROUGH ORIFICEMETER |
