DESCRIPTION:

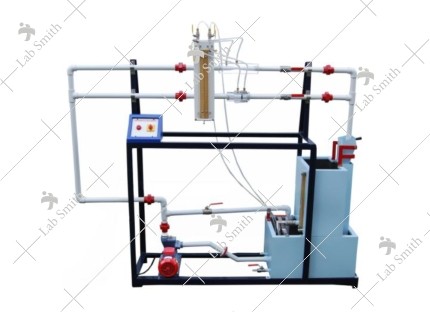

The apparatus consists of two pipelines emerging out from a common manifold. One pipe line contain a Venturimeter and other contains an Orifice. The pressure tapings from the Venturimeter and orifice meter are taken to differential manometer to measure pressure difference. The  Venturimeter and Orificemeter are connected in parallel and any one of them can be put in operation by operating valves provided at the downstream. The flow can also be regulated by these valves.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve are fitted in water line to conduct the experiment on different flow rates. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

• To demonstrate the use of Venturimeter & Orificemeter as flow meters.
• To determine co-efficient of discharge through Venturimeter and Orificemeter.

UTILITIES REQUIRED:

• Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection.
• Water Supply (Initial Fill).
• Floor Drain.
• Floor Area Required: 1.5 x 0.75 m.

TECHNICAL DETAILS:

Ordering Details:
