DESCRIPTION:

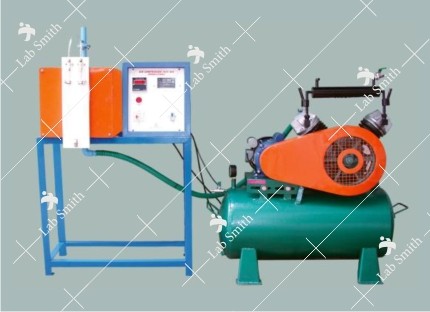

Two Stage Air Compressor Test Rig consists of a double stage reciprocating type air compressor driven by Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir can be measured by Temp. Transmitter and Pressure Transmitter.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To calculate the volumetric efficiency.
• To calculate isothermal Power.
• To calculate compression ratio.

UTILITIES REQUIRED:

• Electricity 2 kW, 220V AC, Single Phase.
• Water Supply Continuous @ 1 LPM at 1 Bar
• Floor Drain Required
• Floor Area 2.5 x 1.25 m.
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Compressor

Double Stage, Double Cylinder,

Make : Kirloskar

Capacity 6.9 CFM max.

Working Pressure : Max. 7 kg/cm2

Motor

2 HP Crompton/Standard make, Swinging Field type

Air Tank

Capacity 150 Ltrs. with safety valve, shut off valve,

Air Flow Measurement

Orificemeter with Differential Pressure Transmitter

Temperature Measurement

By Temperature transmitter

Pressure Measurement

By Pressure transmitter

Load Measurement

By Load cell

Control Panel Comprises of

MCB

For overload protection.

RPM measurement

RPM Indicator with Proximity sensor.

An ENGLISH instruction manual consisting of experimental procedures, block diagram etc.
will be provided along with the Apparatus

The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No

Description

JIHD-657

DOUBLE STAGE AIR COMPRESSOR TEST RIG (With Data Logging Facility)
