DOUBLE STAGE AIR COMPRESSOR TEST RIG

DOUBLE STAGE AIR COMPRESSOR TEST RIG

More Views

DOUBLE STAGE AIR COMPRESSOR TEST RIG

Code:

DESCRIPTION:

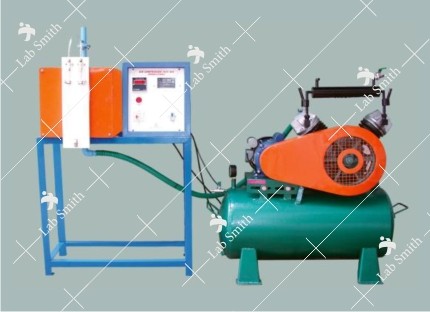

Two Stage Air Compressor Test Rig consists of a double stage reciprocating type air compressor driven by 2 HP Motor through a belt. The outlet of the air compressor is connected to reservoir (Tank) and suction is connected to another air tank with a calibrated orifice plate and a water manometer. Bellow is fitted on one side of the air tank to regulate the flow. Temperature of inlet air, after single compression, inlet and outlet of second compression and pressure in reservoir and at intermediate stage can be measured by Temp. Sensors and gauges.

EXPERIMENTATION:

To calculate the volumetric efficiency.
To calculate isothermal Horse Power.
To calculate compression ratio.

UTILITIES REQUIRED:

Electricity 2 kW, 220V AC, Single Phase.
Floor Area 2.5 x 1.25 m

TECHNICAL DETAILS:

Compressor	Double Stage, Double Cylinder, Make : Kirloskar Capacity 6.9 CFM max. Working Pressure : Max. 7 kg/cm2
Motor	2 HP Crompton/Standard make, Swinging Field type
Spring Balance	10 kg, Dial type
Flow Measurement	Orificemeter with Manometer
Temperature Measurement	RTD PT-100 type sensor (4 nos.)
Air Tank	Capacity 150 Ltrs. with safety valve, shut off valve,
Pressure Gauge	Bourdon type
Control Panel Comprises of
MCB	For overload protection.
RPM measurement	RPM Indicator with Proximity sensor.
Standard make On/Off Switch, Mains Indicator, etc.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-157	DOUBLE STAGE AIR COMPRESSOR TEST RIG
