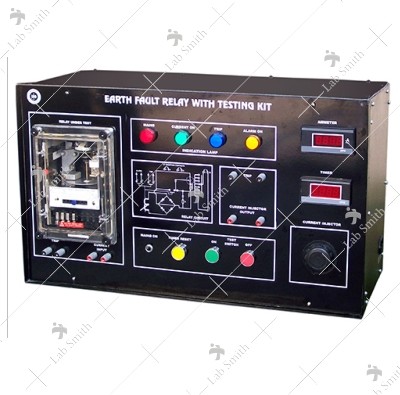

Owing to our rich industrial experience, we have been a well known supplier of Earth Fault Relay Testing Kit to our huge clientele base. It is precisely engineered using supreme quality raw material and ultra modern machinery at our unit in compliance with the set industrial norms and standards. Earth Fault Relay Testing Kit stands high on quality, performance, durability, reliability and has a long operational life. We hence offer this kit to our clients at cost- effective prices in the market.
Objective:To study the construction of relay.To obtain the time & current characteristics of a earth fault relay induction disc type relay.Technical Specifications:Relay Type Earth Fault Relay IDMT(Electromechanical Induction Disc Type) Terminals 4mm Terminals for Trip,Current Output and Input Meters (Digital) 1No. AC Current Meter 0 – 20Amps &1 No. Digital Timer .0001sec. to 9999sec.(Auto) (96mm x 48 mm) Current Injector Inbuilt variable current injector 20Ampsto create Phantom Fault Current Indicators Provided on front panel for Mains,Current, Trip and Alarm Switches Provided on front panel for Mains,Timer Reset, Test Switch (ON/OFF) Relay Circuit Diagram Screen Printed on front panelsize 700mm x 400mm Dimensions 700mm x 400mm x 300mm Weight 30Kgs Approx. Power Requirement 220VAC +10%, 50Hz Standard Accessories:Power Cords, Patch Cords, Instruction Manual.Ordering Details:Catalogue No.DescriptionLEE-2175Earth Fault Relay Testing Kit - Additional Information
-
Additional Information
