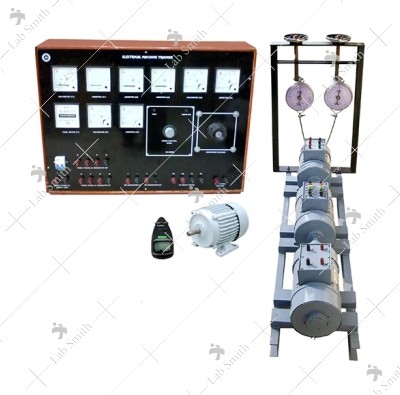

Technical Specifications:Control Panel housed in a wooden cabinet in tapered shape for better view angle. Meters are mounted on thick Bakelite front panel with connection Terminals.Meters:Meter Range Size QTY Voltmeter 0-500V AC 96X96mm 1 Ammeter 0-3A AC 96X96mm 3 Frequency meter 45-55 Hz 96X96mm 1 Voltmeter 0-300V DC 96X96mm 2 Ammeter 0-10A DC 96X96mm 1 Ammeter 0-5A DC 96X96mm 1 Voltmeter 0-300V AC 96X96mm 1 Ammeter 0-10A AC 96X96mm 1 Wattmeter 0-1000W 96X96mm 1
DC Source : 0 - 250V DC/2 Amps (Variable)DC Drive : 1 No. Thyristorized DC Drive For Speed ControlProtections : 2 No. MCB / DP+TPN of Range 16AMPPower requirement: 220~240V AC , 50Hz, Single Phase
Standard Accessories:DC Shunt Motor 2HP 220V, Coupled with DC Shunt Generator0.5KW 220V With AC Alternator 0.5 KW & AC Induction Motor1HP 220VAC
DC Shunt Motor:Capacity 2HP Cage Steel Body Class E Class RPM 1500 Approx Shaft Single Current 7 Amp Max Input Terminal Armature (A1, A2) , Field (F1, F2) Power Requirement 220V DC, Single Phase
DC Shunt Generator:Capacity 0.5 KW Cage Steel Body Class E Class RPM 1500 Approx. Shaft Single Current 2.2 Amp Max Input Terminal Armature (A1 and A2),Field (F1 and F2) Output Voltage 220~ 240V DC, Single Phase
AC Alternator:Capacity 0.5 KW Cage Steel Body Class E Class RPM 1500 Approx. Shaft Single Current 2.2 Amp Max Input TerminalR, Y, B and neutral withF1 and F2
(Field Terminal)Output Voltage 415~440V AC, 50Hz, Three Phase Single Phase Induction Motor:Capacity 1 HP Cage Steel Body Class E Class RPM 1500 Approx. Shaft Single Current 6 Amp Max Input Terminal Phase & Neutral Input Voltage 220~240V AC, 50Hz, Single Phase Tachometer: 1No.Patchcords:10 No.Instruction Manual:1 No.Ordering Details:Catalogue No. Description LEE-2075 Electrical Machine Trainer - Additional Information
-
