Electronics Kit

Electronics Kit

More Views

Electronics Kit

Code:

Electronics Kit

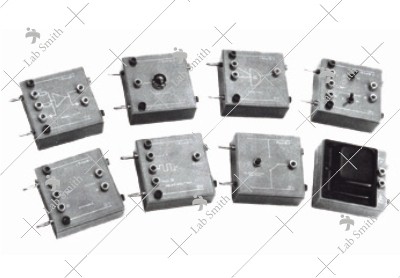

Each module is housed in a plastic box 90 x 90 x 30 mm and is provided with a circuit diagram on the panel. It has necessary input and output sockets. The socket stacking system allows addition of as many modules as desired, designed to work on 6V D. C.

Ordering Information:

Cat. No. Module Description
LPH-92310 Basic Unit

A one-transistor amplifier, may also be used as a squarer, an inverter

or NOT gate, a NOR gate and as a pulse generator.
LPH-92315 Bi-Stable Unit

Comprises two basic units in bi-stable configuration. A trigger input socket is

also provided to allow the bistable to be changed over a continuous train of pulses thus acting as frequency divider
LPH-92320 Multi-vibrator Unit

Incorporates two Basic Units with switches for being coupled (a) resistively to produce a bistable multi vibrator (b)

capacitatively to produce an astable multivibrator of approx 2.5kHz frequency (c)
LPH-92324 Beam Splitter Unit

To convert an oscilloscope to double beam operation. Signals supplied to INPUT 1 and INPUT 2 sockets will be

displayed as separate traces of the oscilloscope.
LPH-92328 And Unit -
LPH-92332 Indicator Unit -
LPH-92338 Switch Unit -



Description

Details

Electronics Kit

Each module is housed in a plastic box 90 x 90 x 30 mm and is provided with a circuit diagram on the panel. It has necessary input and output sockets. The socket stacking system allows addition of as many modules as desired, designed to work on 6V D. C.

Ordering Information:

Cat. No. Module Description
LPH-92310 Basic Unit

A one-transistor amplifier, may also be used as a squarer, an inverter

or NOT gate, a NOR gate and as a pulse generator.
LPH-92315 Bi-Stable Unit

Comprises two basic units in bi-stable configuration. A trigger input socket is

also provided to allow the bistable to be changed over a continuous train of pulses thus acting as frequency divider
LPH-92320 Multi-vibrator Unit

Incorporates two Basic Units with switches for being coupled (a) resistively to produce a bistable multi vibrator (b)

capacitatively to produce an astable multivibrator of approx 2.5kHz frequency (c)
LPH-92324 Beam Splitter Unit

To convert an oscilloscope to double beam operation. Signals supplied to INPUT 1 and INPUT 2 sockets will be

displayed as separate traces of the oscilloscope.
LPH-92328 And Unit -
LPH-92332 Indicator Unit -
LPH-92338 Switch Unit -
