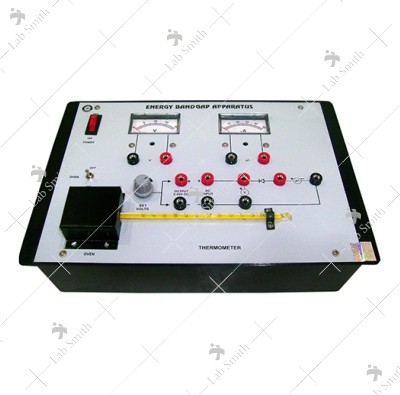

We are a proud supplier of Energy Band Gap Apparatus to our highly honored clients. It is a durable apparatus sturdily constructed using high quality raw material and ultra modern machinery at our vendors’ unit. It is inspected on various parameters to ensure high performance, durability, accuracy, easy installation and a long operational life. Energy Band Gap Apparatus is thus applauded by our clients in the form of increasing demands in national as well as international markets among our competitors.

Objective:

• Reverse saturation current Vs temperature in reverse biased PN junction Diode.

Technical Specifications:

• Inbuilt Variable DC Regulated Power Supply

• Output voltages:      0-20VDC

• On Board Analog Moving Coil Meters (60 mm x 35 mm)

• Voltmeter:    0-20VDC

• Ammeter:      0-50MicroADC

• Oven, Thermometer & Diode

• Electric oven

• Mercury thermometer

• PN junction diode is placed inside the oven.

• High quality Aluminum used as front panel of 300mm x 220mm & mounted on light weight shock proof plastic cabinet

• Symbol diagram printed on Aluminum Front Panel & all important test Points are brought out on front panel

• Power requirement:           230 VAC 10%, 50Hz.

• Weight:                                  1.5 Kg Approx.

• Dimensions (mm): 330( L) x 225(B) x 75(H)

Standard Accessories:

Power chord, Patch chords & Instruction manual.
