DESCRIPTION:

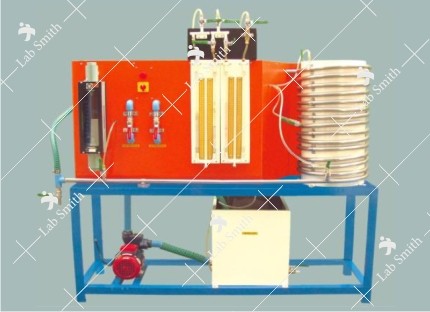

Helical coils are used for heating or cooling in process tanks. When a fluid flows through a curved tube, centrifugal force acting upon the various elements of fluid moving with different velocities causes secondary circulation. Secondary flow results in higher heat transfer characteristics. Further, secondary flow stabilizes the laminar flow leading to a higher critical Reynolds number for transition from laminar to turbulent flow.

The present set-up has a facility to interface the system with computer which enables to log the experimental data using computer. The educational software and data-logging package has been developed for unit. The software environment base is of Lab view of NATIONAL INSTRUMENTS, USA. This software is compatible to interfacing unit designed by “Lab Smith”. This software package provides a comprehensive educational software environment within which the investigations can be performed. This software is capable to tabulate the sample readings according to the requirement of experiment under study and results obtained can be compared. The real time data acquisition can be done by interfacing the set-up with computer using software. Software allows the user to have control on data logging, printing the stored data, preparing spread sheets in Excel etc.

EXPERIMENTATION:

• To determine the critical Reynolds number of a fluid flowing through the coil.
• To compare Pressure drop in helical coil with that in a straight pipe of same length, inside diameter and surface roughness

UTILITIES REQUIRED:

• Electricity 500 watts, 220 V, 1 Phase.
• Floor Area 1 m x 2 m.
• Computer System: Pentium IV with DVD Drive, Windows 7, MS-Office pre-loaded. One USB slot required in PC for DATA ACQUISITION CARD.

TECHNICAL DETAILS:

Ordering Details:
