DESCRIPTION:

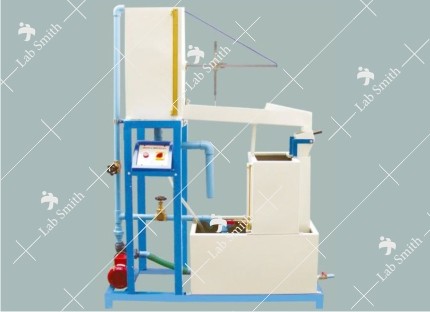

It consists of a tank provided with inlet supply diffuser, overflow. Provision for fitting Orifice or Mouthpiece at the outlet of tank. An arrangement is done to vary head and keep it constant at desired level. A pointer gauge arrangement for measuring X-Y co-ordinates of Jet is also fitted.

Present set-up is self-contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow rate of water is measured with the help of measuring tank and stop watch.

EXPERIMENTATION:

To determine the co-efficient of discharge of different Orifice and mouthpieces.
To determine the co-efficient of velocity.

UTILITIES REQUIRED:

Water Supply.
Floor Drain.
Electricity 0.5 kW, 220 V AC, Single Phase.
Floor Area 1.5 x 0.75 m.

TECHNICAL DETAILS:

Set of Orifices	Material Acrylic (2 Nos.) Dia. 10mm and 15 mm
Set of Mouthpieces	Material Acrylic (3 Nos.) Dia 10 mm (L/D = 1) Dia 10 mm (L/D = 2.5) Dia 10 mm (L/D = 4)
Constant Head tank	35 Ltrs.
Pointer Gauge	To measure X-Y co-ordinates of Jet.
Water Circulation	FHP Pump, Crompton make.
Flow Measurement	Using Measuring Tank with Piezometer, Capacity 25 Ltrs.
Sump Tank	Capacity 70 Ltrs.
Stop Watch	Electronic.
Control Panel Comprises of	Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-002	FLOW THROUGH ORIFICE & MOUTHPIECE
