FRANCIS TURBINE TEST RIG (Output Power 3 kW)

Code:

DESCRIPTION:

Francis Turbine is a reaction turbine, which was developed by an English born American Engineer Sir J. B. Francis. The water enters the turbine through the outer periphery of the runner in the radial direction and leaves the runner in axial direction and hence it is called a mixed flow turbine. As the water flows to the runner, a part of pressure energy goes on changing into kinetic energy. Thus the water through the runner is under pressure. The runner is completely enclosed in a air tight casing and the casing & runner is always full of water.


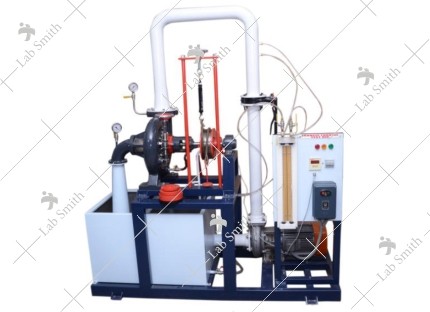

The present set-up consists of a runner. The water is fed to the turbine by means of Centrifugal Pump, radially to the runner. The runner is directly mounted on one end of a central SS shaft and other end is connected to a brake arrangement. The circular window of the turbine casing is provided with a transparent acrylic sheet for observation of flow on to the runner. This runner assembly is supported by thick cast iron pedestal. Load is applied to the turbine with the help of brake arrangement so that the efficiency of the turbine can be calculated. A draught tube is fitted on the outlet of the turbine. The set-up is complete with guide mechanism. Pressure and Vacuum gauges are fitted at the inlet and outlet of the turbine to measure the total supply head on the turbine.

EXPERIMENTATION:

To study the operation of a Francis Turbine.
To determine the Output Power of Francis Turbine.
To determine the Turbine Efficiency

UTILITIES REQUIRED:

Water Supply and Drain.
Electricity 15 kW, 440V AC, Three Phase.
Floor Area 2 x 1 m.

TECHNICAL DETAILS:

Output Power	3 KW
Discharge	2000 LPM (Approx.)
Supply Head	20 m (Approx.)
Speed	1500 RPM (Approx.)
Runner	Having Curved Vanes.
Dynamometer	Rope Brake type, Dia 300 mm.
RPM measurement	Digital RPM Indicator with Proximity sensor.
Water Circulation	Centrifugal Pump, Kirloskar Make, Capacity 15 HP Three Phase.
Discharge Measurement	Pitot Tube with Manometer.
Control Panel Comprises of	L&T make Starter, Mains Indicator, MCB for overload protection
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-115A	FRANCIS TURBINE TEST RIG (Output Power 3 kW)
