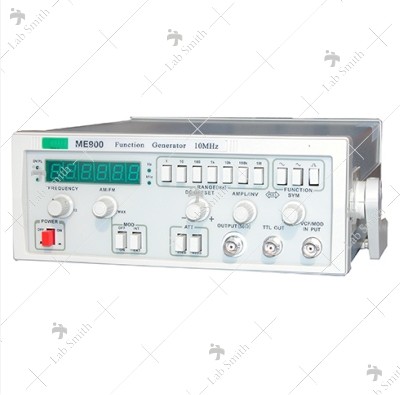

Owing to our rich industrial experience, we have been a reliable manufacturer of Function Generator 10 Mhz With Am Fm & Frequency Counter to our widely spread clients. It finds application for compressors as per the diverse requirements. It is constructed using high quality raw material and progressive machinery as per the set industrial norms and standards. Function Generator 10 Mhz With Am Fm & Frequency Counter goes through various quality inspections to make sure that no compromise is done with its quality at any stage of production. It is available at cost- effective prices in the market.Features :Output Waveform: Sine, Square, Triangle, Ramp, Pulse- Voltage Control Frequency (VCF) capability
- TTL/CMOS and output synchronous output
- 1Hz~30MHz(Ext.) Frequency Counter
- AM &FM Output
Technical Specifications:
Frequency range 0.1Hz ~ 10MHz Output waveform Sine, Triangle, Square, Positive & Negative Pulse, Positive & Negative Ramp Output impedance 50ohms ± 10% Amplitude Not less than 20V p-p (open circuit) DC voltage 0 ~ +10V continuously adjustable Symmetry range 90:10 – 10:90 Rising edge of square <50ns Sine characteristics < 1% at 10Hz ~ 100KHz DistortionFrequency response 0.1Hz ~ 100kHz :< ± 0.5dB,100kHz ~ 2MHz :<± 1dB TTL/CMOS Output level TTL low level <0.4V in pulse wave,high level <3.5V.CMOS low <0.5V in pulse wave,High level 5V~14V continuously Variable Rising time < 100ns – 50ns VCF Input Output voltage -5V~0V ± 10% Max. Volt-controlled 1000:1 Input signal DC ~ 1kHz Frequency Counter Measuring range 1Hz ~ 30MHz Input impedance Not less than 1Mohms/ 20pF Sensitivity 100mV rms Max. Input 150V (AC + DC) Input attenuation 20dB Accuracy Less than 0.003% ± 1digit Power requirement 220 VAC +10% , 50 Hz Weight 3.0Kg Approx. Dimensions (mm) 225(L) x 270(B) x 85(H) Standard Accessories:Power cable, BNC to Crocodile Clip Probes - 1No & BNC to BNC Probe - 1No., Instruction manualOrdering Details:Catalogue No. Description LTM-5045 Function Generator 10 Mhz With Am Fm& Frequency Co - Additional Information
-
