- Description
-
Details

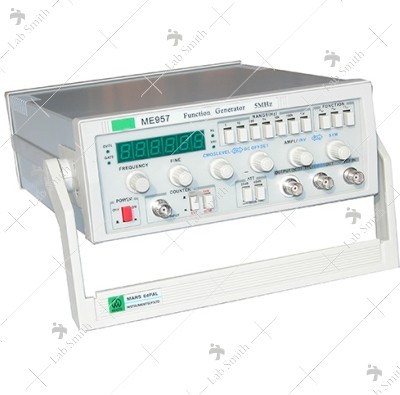

We are an eminent supplier of Function Generator 5 MHz with Frequency Counter to our huge clientele base. This finds application at various places to fit the varied requirements of our customers. It is precisely designed using fine quality raw material that is processed using latest tools and equipment at our vendors’ state-of-the-art unit. Function Generator 5 MHz with Frequency Counter stands high on performance, efficiency, durability, quality and low maintenance. We offer this to our clients at highly reasonable prices and strive to make delivery within a promised period of time.Features:- Output Waveform: Sine, Triangle, Square, Ramp, Pulse
- TTL/CMOS output
- Attenuation 20db, 40db, & 60db (20+40db)
- 1Hz ~ 30MHz (Ext.) Frequency Counter
Technical Specifications:Frequency range 0.1Hz ~ 5MHz Output waveform Sine, Triangle, Square,Positive & Negative Pulse,Positive & Negative Ramp Output impedance 50ohms + 10% Amplitude Not less than 20V p-p (open circuit) DC voltage 0~+10V continuously adjustable Symmetry range 90:10 – 10:90 Attenuation 20dB, 40dB, 60dB Rising edge of square <100ns Sine characteristics <1% at 10Hz ~ 100KHz Distortion Frequency response 0.1Hz ~ 100kHz :< ± 0.5dB,100kHz ~ 5MHz :<± 1dB TTL/CMOS Output level TTL low level <0.4V in pulse wave,High level <3.5V.CMOS low <0.5V in pulse wave,high level 5V~14V continuously Variable Rising time < 100ns VCF Input Output voltage -5V ~ 0V ± 10% Max. Volt-controlled 1000:1 Input signal DC ~ 1kHz Frequency Counter Measuring range 1Hz ~ 30MHz Input impedance Not less than 1Mohms/ 20pF Sensitivity 100mV rms Max. Input 150V (AC + DC) Input attenuation 20dB Accuracy Less than 0.003% ± 1digit Power requirement 220 VAC +10% , 50 Hz Weight 3.0Kg Approx. Dimensions (mm) 220(L) x 270(B) x 185(H) Standard Accessories :- Power cable, BNC to Crocodile Clip Probes - 1No & BNC to BNC Probe - 1No.,
- Instruction manual
Ordering Details:Catalogue No. Description LTM-5055 Function Generator 5 MHz - Additional Information
-
Additional Information
Code No - Reviews
-
