DESCRIPTION:

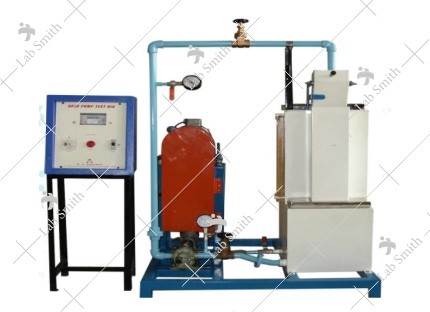

The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a DC Motor. Power input to the DC Motor is varied by means of a Thyristor controlled DC Drive to vary the RPM of motor. A RPM Indicator with Proximity sensor indicates the RPM of Pump. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.

EXPERIMENTATION:

To determine total head, pump output, overall efficiency and pump efficiency.

To plot Graph:

Head vs Discharge
Pump efficiency vs Discharge.

UTILITIES REQUIRED:

Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.
Oil: SAE 20W 40 (30 litrs)
Floor Area required: 1.5 x 0.75 m.

TECHNICAL DETAILS:

Pump	Speed 1500 RPM (max.) Capacity 1 HP, Head 5kg/cm2 (max.)
Medium Flow	Clear Oil.
Drive	1 HP DC motor with Thyristor controlled DC Drive for variable speed.
Flow Measurement	Using Measuring Tank (Capacity 20 Ltrs. (approx.) and Electronic Stop Watch
Sump Tank	Capacity 35 Ltrs. (approx.)
Pressure Gauge	Bourdon type
Vacuum Gauge	Bourdon type
Control Panel Comprises of
RPM measurement	Digital RPM Indicator with Proximity sensor.
Energy measurement	Electronic Energy meter, L&T make.
Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.

Ordering Details:

Catalogue No	Description
JIHD-109	GEAR PUMP TEST RIG(Variable Speed with DC Motor)
