GEAR PUMP TEST RIG (With 3 Prefixed Speeds and Step Cone Pulley)

GEAR PUMP TEST RIG (With 3 Prefixed Speeds and Step Cone Pulley)

More Views

GEAR PUMP TEST RIG (With 3 Prefixed Speeds and Step Cone Pulley)

Code:

DESCRIPTION:

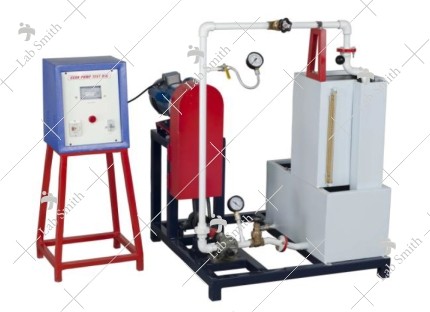

The present Gear Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Gear Pump having a pair of meshed gears, coupled with a AC Motor. Flow of fluid is measured by using measuring tank and stop watch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.

EXPERIMENTATION:

To determine total head, pump output, overall efficiency and pump efficiency.
To plot Graph:
Head vs Discharge
Pump efficiency vs Discharge.

UTILITIES REQUIRED:

Electricity supply: Single Phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection.
Oil: SAE 20W 40 (30 litrs)
Floor Area required: 1.5 x 0.75 m.
Tachometer to measure RPM

TECHNICAL DETAILS:

Pump	Speed 1500 RPM (max.) Capacity 1 HPHead 5kg/cm2 (max.)
Medium Flow	Clear Oil.
Drive	1 HP Crompton make motor having Step Cone Pulley for Three different speeds.
Flow Measurement	Using Measuring Tank (Capacity 20 Ltrs. (approx.) and Electronic Stop Watch
Sump Tank	Capacity 35 Ltrs. (approx.)
Pressure Gauge	Bourdon type.
Vacuum Gauge	Bourdon type
Control Panel Comprises of
Energy measurement	Energy meter Electronic L&T make.
MCB	For overload protection.
Standard make On/Off Switch, Mains Indicator, etc.
Tanks will be made of Stainless Steel.
An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus
The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
