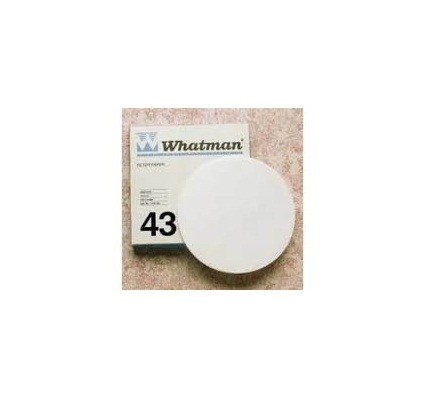

Grade 43 Ashless Filter Paper for Inorganic Analysis

GE’s Whatman Grade 43 filters support inorganic analysis and other forms of instrumental analyses. The low ash content also makes Grade 43 appropriate for gravimetric analyses requiring sample combustion.

• Very low ash content (0.007% ash concentration maximum)
• Intermediate particle retention rating of 16 µm
• Herzberg filtration speed of 155 s
• Particle collection between that of Grades 40 and 41

Particle collection and inorganic analysis

Whatman Grade 43 from GE Healthcare’s Life Sciences business can be ashed during gravimetric analysis without contributing substantially to the measured weight. These filters are also appropriate for:

• Inorganic analysis in the construction, mining, and steel industries
• Particle collection for air pollution monitoring for subsequent analysis by X-Ray fluorescence (XRF) techniques
• Soil analysis
• Foodstuffs filtration analysis

Grade 43: 16 µm

Specifications:

• Grade: Grade 43
• Format: Circles
• Type: Ashless
• Typical Particle Retention in Liquid: 16 µm
• Typical Water Flow Rate (ml/min) for 9cm diameter: 62
• Nominal Thickness: 220 µm
• Nominal Basis Weight: 95 g/m²
• Nominal Air Flow Rate: 11s/100mL/in²
• Nominal Ash Content: 0.007%
• Material: High-quality cotton linters
• Alpha Cellulose Content Min.: ≥98%
• Typical Trace Element Levels: Aluminium 2.5 µg/g, Antimony <0.5 µg/g, Arsenic <0.5 µg/g, Barium <0.5 µg/g, Boron <1 µg/g, Calcium 8.3 µg/g, Chromium 1.5 µg/g, Copper 2 µg/g, Iron 12 µg/g, Lead <0.5 µg/g, Magnesium 4 µg/g, Manganese <0.5 µg/g, Mercury <0.5 µg/g, Potassium 2.3 µg/g, Silicon 6.2 µg/g, Sodium 16.8 µg/g, Zinc 64.5 µg/g
